A107229
A107229
A107229
A107229
Favorite Products
A107229
A107229

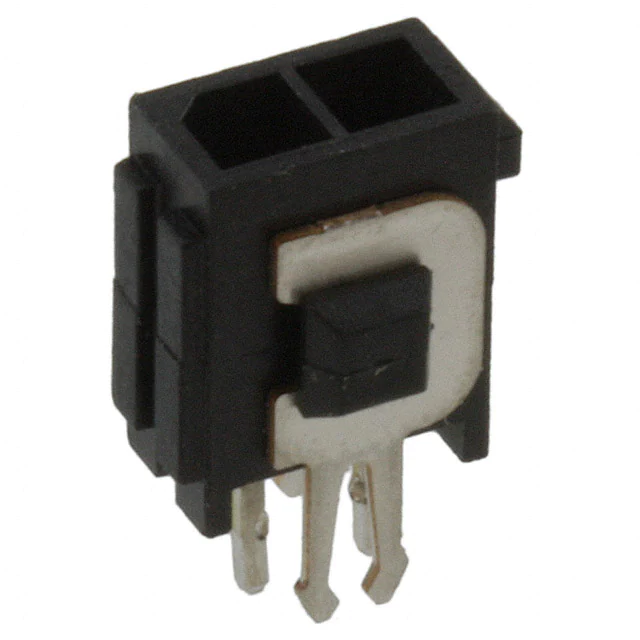

CONN HEADER VERT 2POS
3-794680-8.pdf
3,002
3,002 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
Micro MATE-N-LOK
Mounting Type
Through Hole
Contact Finish - Mating
Tin
Voltage Rating
250V
Base Product Number
794680
Number of Positions Loaded
All
Operating Temperature
-40°C ~ 105°C
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Color
Black
Number of Positions
2
Fastening Type
Locking Ramp
Mated Stacking Heights
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Mfr
TE Connectivity AMP Connectors
Package
Tray
Termination
Solder
Contact Length - Post
0.125" (3.18mm)
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Ingress Protection
-
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Contact Length - Mating
-
Contact Shape
Square
Features
Board Lock
Row Spacing - Mating
0.118" (3.00mm)
Contact Finish - Post
Tin
Applications
General Purpose
Product Status
Active
Connector Type
Header
Pitch - Mating
-
Number of Rows
2
Style
Board to Cable/Wire
Current Rating (Amps)
Varies by Wire Gauge
Insulation Height
0.364" (9.25mm)
Insulation Material
Polyamide (PA), Nylon
