A105054
A105054
A105054
Favorite Products
A105054
A105054

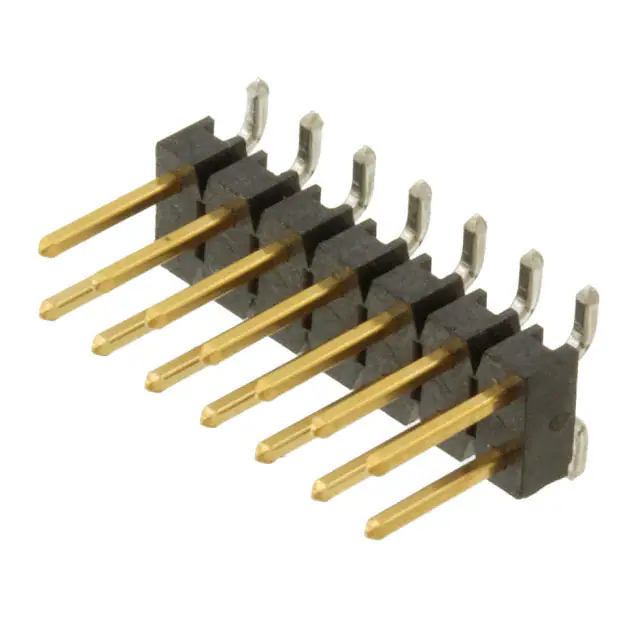

CONN HEADER SMD 14POS 2.54MM
861
861 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Pitch - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Insulation Color
Black
Mfr
TE Connectivity AMP Connectors
Series
AMPMODU Mod II
Mounting Type
Surface Mount
Number of Rows
2
Contact Length - Post
-
Insulation Height
0.090" (2.29mm)
Contact Shape
Square
Ingress Protection
-
Connector Type
Header, Breakaway
Material Flammability Rating
UL94 V-0
Base Product Number
146130
Product Status
Active
Number of Positions
14
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Finish - Post
Tin
Voltage Rating
30VAC
Mated Stacking Heights
-
Operating Temperature
-65°C ~ 125°C
Current Rating (Amps)
3A
Applications
-
Contact Type
Male Pin
Shrouding
Unshrouded
Termination
Solder
Contact Length - Mating
0.230" (5.84mm)
Contact Finish Thickness - Post
100.0µin (2.54µm)
Package
Tube
Style
Board to Board or Cable
Overall Contact Length
-
Insulation Material
Liquid Crystal Polymer (LCP)
Features
-
