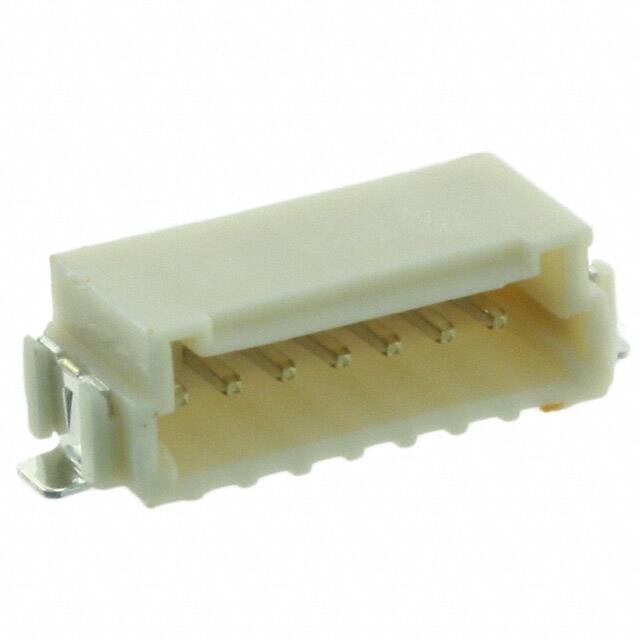

A101012TR
A101012TR
Favorite Products
A101012TR
A101012TR
CONN HEADER SMD R/A 7POS 1.5MM
292228-9.pdf
3,094
3,094 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Number of Positions Loaded
All
Contact Shape
Square
Contact Material
Brass
Mfr
TE Connectivity AMP Connectors
Number of Positions
7
Contact Finish - Mating
Tin
Series
Mini CT
Contact Type
Male Pin
Number of Rows
1
Mounting Type
Surface Mount, Right Angle
Fastening Type
Detent Lock
Insulation Height
0.193" (4.90mm)
Insulation Color
Beige
Voltage Rating
50VAC
Product Status
Active
Pitch - Mating
0.059" (1.50mm)
Package
Tape & Reel (TR)^^Cut Tape (CT)^^Digi-Reel®
Connector Type
Header
Row Spacing - Mating
-
Termination
Solder
Base Product Number
292228
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Material Flammability Rating
UL94 V-0
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Contact Length - Mating
0.094" (2.40mm)
Operating Temperature
-30°C ~ 105°C
Ingress Protection
-
Contact Finish Thickness - Post
-
Contact Length - Post
-
Current Rating (Amps)
Varies by Wire Gauge
Overall Contact Length
-
Insulation Material
Polyamide (PA6T), Nylon 6T, Glass Filled
Features
Solder Retention
Mated Stacking Heights
-
Applications
General Purpose
