952-2931
952-2931
952-2931
Favorite Products
952-2931
952-2931
Harwin Inc.

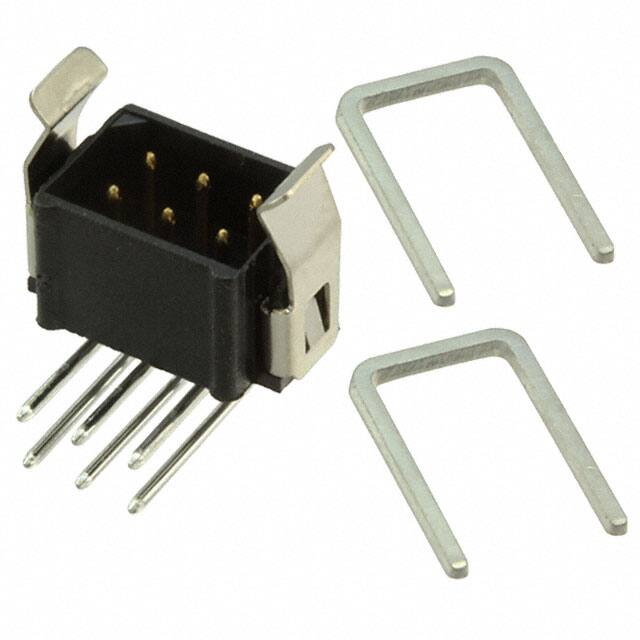

CONN HEADER R/A 6POS 2MM
851
851 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.079" (2.00mm)
Insulation Height
0.235" (5.97mm)
Applications
-
Mfr
Harwin Inc.
Termination
Solder
Style
Board to Board or Cable
Contact Length - Post
0.118" (3.00mm)
Features
Strain Relief Clips
Insulation Color
Black
Number of Positions
6
Material Flammability Rating
UL94 V-0
Series
Datamate L-Tek
Overall Contact Length
-
Operating Temperature
-55°C ~ 125°C
Mated Stacking Heights
-
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Type
Male Pin
Pitch - Mating
0.079" (2.00mm)
Mounting Type
Through Hole, Right Angle
Contact Length - Mating
-
Contact Finish Thickness - Mating
29.5µin (0.75µm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating
120V
Contact Finish - Mating
Gold
Ingress Protection
-
Product Status
Obsolete
Current Rating (Amps)
2.2A
Package
Tube
Connector Type
Plug
Number of Rows
2
Number of Positions Loaded
All
Shrouding
Shrouded - 4 Wall
Fastening Type
Friction Lock
Contact Shape
Circular
Contact Finish - Post
Tin-Lead
Contact Material
Phosphor Bronze
