952-2443
952-2443
Favorite Products
952-2443
952-2443
Harwin Inc.

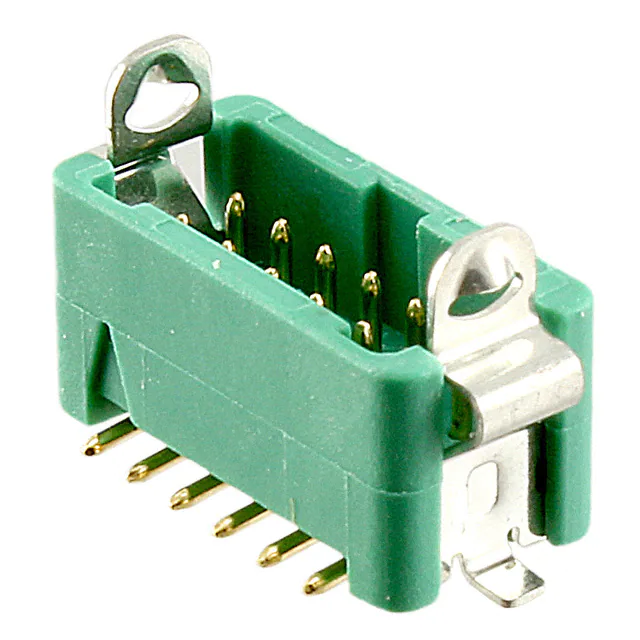

CONN HEADER SMD 12POS 1.25MM
811
811 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
Gecko
Contact Shape
Circular
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Base Product Number
G125-MS1
Connector Type
Header
Pitch - Mating
0.049" (1.25mm)
Operating Temperature
-65°C ~ 150°C
Package
Strip
Mounting Type
Surface Mount
Termination
Solder
Mfr
Harwin Inc.
Number of Positions
12
Contact Length - Post
-
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Voltage Rating
-
Mated Stacking Heights
7.35mm, 7.45mm, 7.8mm
Applications
-
Row Spacing - Mating
0.049" (1.25mm)
Contact Type
Male Pin
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Product Status
Active
Number of Positions Loaded
All
Overall Contact Length
-
Contact Finish - Mating
Gold
Features
Pick and Place, Solder Retention
Style
Board to Board or Cable
Insulation Height
0.193" (4.90mm)
Material Flammability Rating
UL94 V-0
Insulation Color
Green
Fastening Type
Latch Lock
Contact Length - Mating
-
Contact Finish - Post
-
Contact Material
Phosphor Bronze
Current Rating (Amps)
2A per Contact
Contact Finish Thickness - Post
-
Ingress Protection
-
