732-5358
732-5358
732-5358
Favorite Products
732-5358
732-5358
Würth Elektronik

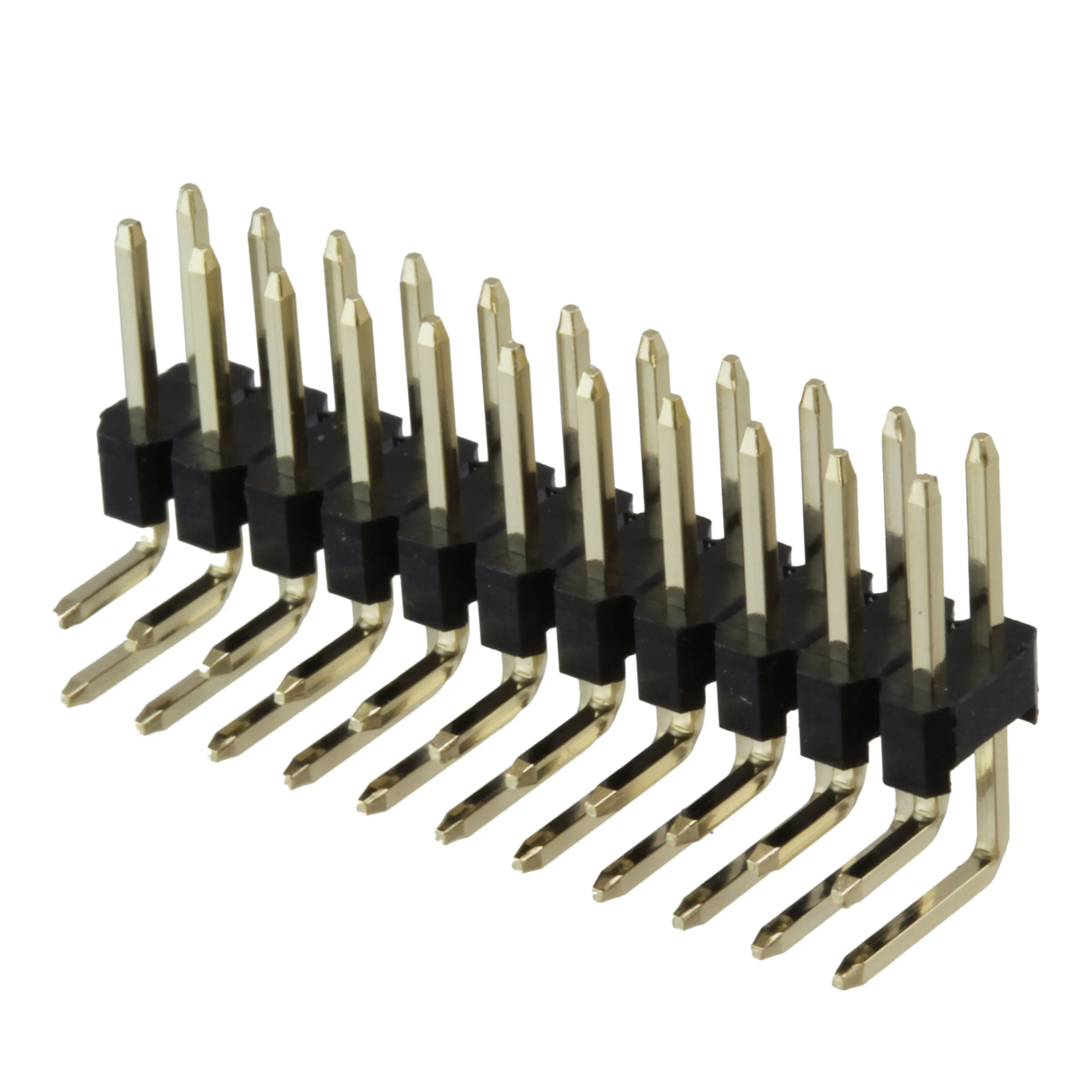

CONN HEADER R/A 22POS 2.54MM
6130xx21021.pdf
10,039
10,039 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Row Spacing - Mating
0.100" (2.54mm)
Applications
-
Contact Finish - Post
-
Contact Length - Mating
0.236" (6.00mm)
Contact Type
Male Pin
Contact Length - Post
0.118" (3.00mm)
Contact Material
Copper Alloy
Mfr
Würth Elektronik
Number of Rows
2
Shrouding
Unshrouded
Insulation Height
0.200" (5.08mm)
Contact Finish Thickness - Mating
-
Features
-
Material Flammability Rating
UL94 V-0
Insulation Color
Black
Style
Board to Board or Cable
Termination
Solder
Overall Contact Length
-
Series
WR-PHD
Voltage Rating
250V
Contact Finish Thickness - Post
-
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Insulation Material
Polyamide (PA6T), Nylon 6T
Contact Shape
Square
Ingress Protection
-
Package
Bulk
Connector Type
Header
Number of Positions Loaded
All
Mounting Type
Through Hole, Right Angle
Product Status
Active
Number of Positions
22
Fastening Type
Push-Pull
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
3A
Mated Stacking Heights
-
