Würth Elektronik

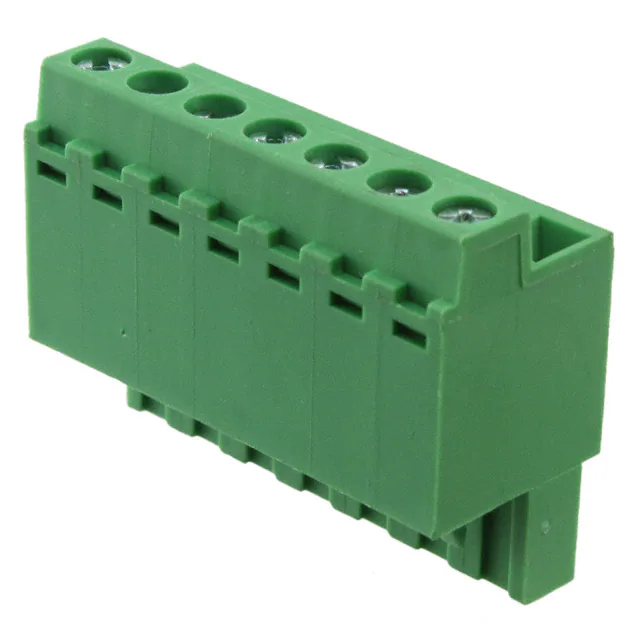

TERM BLOCK PLUG 7POS STR 5.08MM
6913735000xxB.pdf
851
851 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Termination Style
Screw - Pressure Clip
Number of Levels
1
Wire Strip Length
10mm
Positions Per Level
7
Wire Gauge or Range - mm²
0.2-3.3mm²
Contact Mating Finish
-
Housing Material
Polyamide (PA66), Nylon 6/6
Mfr
Würth Elektronik
Wire Gauge or Range - AWG
12-24 AWG
Torque - Screw
0.45 Nm (4.0 Lb-In)
Plug Wire Entry
180°
Screw Size
M2.6
Header Orientation
-
Current - IEC
-
Operating Temperature
-40°C ~ 105°C
Features
Retention Latches (Non-Wire Side)
Type
Plug, Female Sockets
Number of Positions
7
Color
Green
Material Flammability Rating
UL94 V-0
Contact Material
-
Series
WR-TBL Series 373B
Product Status
Active
Current - UL
16 A
Insulation Height
0.587" (14.91mm)
Package
Tray
Pitch
0.200" (5.08mm)
Mounting Type
Free Hanging (In-Line)
Voltage - UL
300 V
Ingress Protection
-
Contact Tail Length
-
