609-3747
609-3747
Amphenol ICC (FCI)

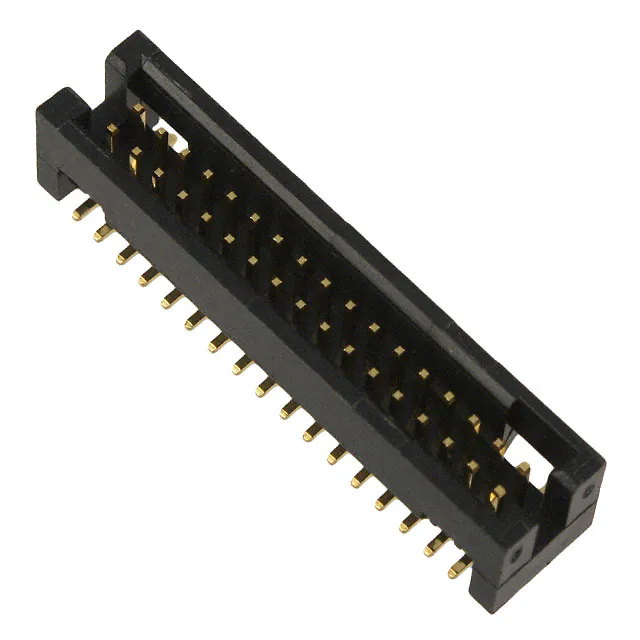

CONN HEADER SMD 34POS 1.27MM
3,096
3,096 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Color
Black
Termination
Solder
Contact Type
Male Pin
Overall Contact Length
-
Base Product Number
20021221
Row Spacing - Mating
0.050" (1.27mm)
Mated Stacking Heights
-
Package
Tube
Connector Type
Header
Mounting Type
Surface Mount
Fastening Type
Push-Pull
Contact Finish - Post
Tin
Product Status
Obsolete
Contact Shape
Square
Pitch - Mating
0.050" (1.27mm)
Number of Rows
2
Contact Finish - Mating
Gold
Contact Material
Copper Alloy
Operating Temperature
-55°C ~ 125°C
Ingress Protection
-
Voltage Rating
125VAC
Contact Length - Mating
0.120" (3.05mm)
Insulation Material
Thermoplastic
Mfr
Amphenol ICC (FCI)
Series
Minitek127® 1.27mm
Number of Positions
34
Features
-
Applications
-
Number of Positions Loaded
All
Style
Board to Board
Shrouding
Shrouded - 4 Wall
Contact Length - Post
-
Insulation Height
0.220" (5.60mm)
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
1A per Contact
Contact Finish Thickness - Post
50.0µin (1.27µm)
