609-3096
609-3096
Amphenol ICC (FCI)

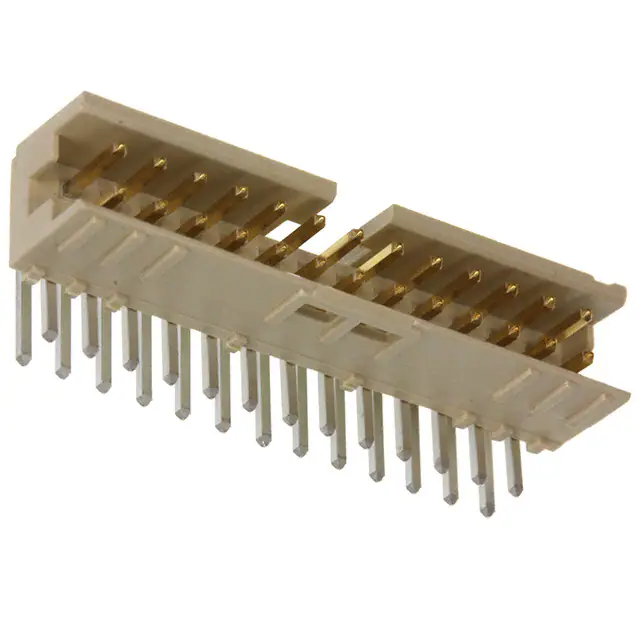

CONN HEADER R/A 26POS 2MM
3,095
3,095 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Material
Thermoplastic
Contact Length - Mating
0.157" (4.00mm)
Product Status
Active
Shrouding
Shrouded - 4 Wall
Number of Positions
26
Mfr
Amphenol ICC (FCI)
Package
Tube
Connector Type
Header
Row Spacing - Mating
0.079" (2.00mm)
Fastening Type
Latch Holder
Contact Finish - Mating
Gold, GXT™
Contact Finish Thickness - Post
78.7µin (2.00µm)
Base Product Number
98464
Overall Contact Length
-
Insulation Height
0.240" (6.10mm)
Contact Finish - Post
Tin
Ingress Protection
-
Mated Stacking Heights
-
Mounting Type
Through Hole, Right Angle
Termination
Solder
Contact Shape
Square
Pitch - Mating
0.079" (2.00mm)
Contact Type
Male Pin
Number of Rows
2
Number of Positions Loaded
All
Contact Length - Post
0.098" (2.50mm)
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Material
Copper Alloy
Current Rating (Amps)
2A (AC/DC)
Series
Minitek® 2.00mm
Features
Keying Slot
Operating Temperature
-
Insulation Color
Cream
Applications
-
Style
Board to Board or Cable
Voltage Rating
200V (AC/DC)
