609-3022
609-3022
609-3022
Favorite Products
609-3022
609-3022
Amphenol ICC (FCI)

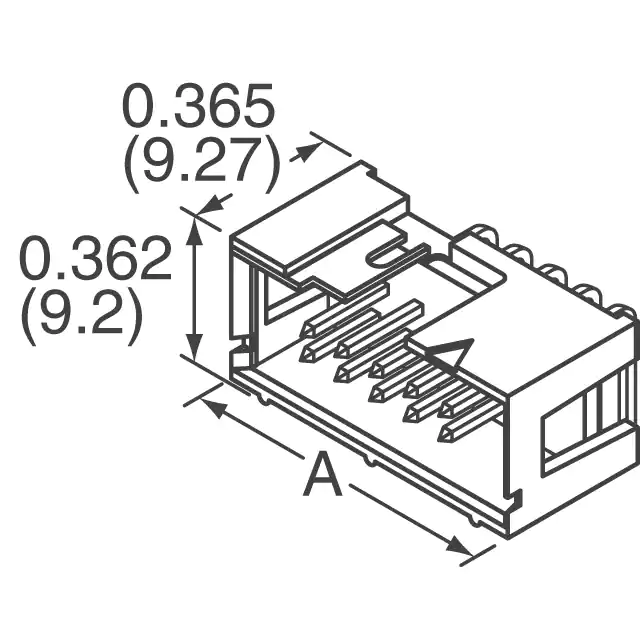

CONN HEADER R/A 10POS 2.54MM

10,100
10,100 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mounting Type
Through Hole, Right Angle
Contact Length - Post
0.079" (2.00mm)
Number of Rows
2
Operating Temperature
-
Style
Board to Cable/Wire
Contact Finish - Mating
Gold, GXT™
Base Product Number
10056845
Connector Type
Header
Contact Shape
Square
Voltage Rating
-
Contact Finish Thickness - Post
78.7µin (2.00µm)
Package
Tube
Contact Type
Male Pin
Number of Positions
10
Overall Contact Length
-
Insulation Height
0.362" (9.20mm)
Ingress Protection
-
Contact Length - Mating
0.236" (6.00mm)
Contact Material
Copper Alloy
Applications
-
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Product Status
Active
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
-
Mfr
Amphenol ICC (FCI)
Series
Quickie™
Features
Keying Slot
Insulation Color
Black
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Contact Finish - Post
Tin
Insulation Material
Thermoplastic
Termination
Solder
Fastening Type
Detent Lock
Mated Stacking Heights
-
