609-2681
609-2681
609-2681
609-2681
609-2681
609-2681
Favorite Products
609-2681
609-2681
Amphenol ICC (FCI)

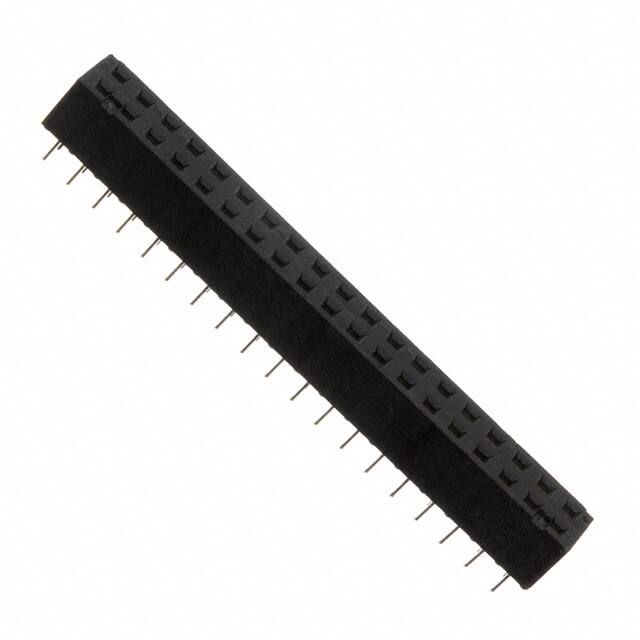

CONN RCPT 38POS 0.079 GOLD PCB
3,032
3,032 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Type
Female Socket
Termination
Solder
Ingress Protection
-
Mated Stacking Heights
-
Base Product Number
63453
Number of Positions
38
Row Spacing - Mating
0.079" (2.00mm)
Current Rating (Amps)
2A
Contact Material
Phosphor Bronze
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Contact Length - Post
0.098" (2.50mm)
Features
-
Contact Shape
Square
Style
Board to Board
Contact Finish - Post
Tin
Series
Minitek® 2.00mm
Package
Tube
Pitch - Mating
0.079" (2.00mm)
Fastening Type
Push-Pull
Material Flammability Rating
UL94 V-0
Voltage Rating
200V
Connector Type
Receptacle
Number of Rows
2
Mounting Type
Through Hole
Applications
General Purpose, Industrial, Medical
Product Status
Active
Number of Positions Loaded
All
Contact Finish - Mating
Gold
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Contact Finish Thickness - Post
60.0µin (1.52µm)
Mfr
Amphenol ICC (FCI)
Operating Temperature
-55°C ~ 125°C
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
