609-2666
609-2666
Amphenol ICC (FCI)

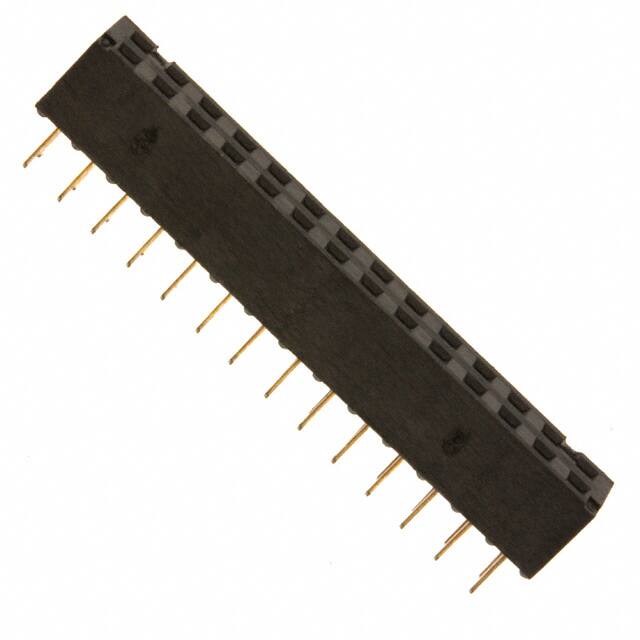

CONN RCPT 28POS 0.079 GOLD PCB
841
841 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Material
Phosphor Bronze
Current Rating (Amps)
2A
Connector Type
Receptacle
Termination
Solder
Series
Minitek® 2.00mm
Contact Type
Female Socket
Number of Positions Loaded
All
Number of Rows
2
Mounting Type
Through Hole
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Contact Length - Post
0.098" (2.50mm)
Contact Finish - Post
Tin
63453
Package
Tube
Applications
General Purpose, Industrial, Medical
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Material Flammability Rating
UL94 V-0
Voltage Rating
200V
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Ingress Protection
-
Features
-
Contact Finish Thickness - Post
60.0µin (1.52µm)
Mated Stacking Heights
-
Contact Shape
Square
Style
Board to Board
Number of Positions
28
Row Spacing - Mating
0.079" (2.00mm)
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mfr
Amphenol ICC (FCI)
Fastening Type
Push-Pull
Operating Temperature
-55°C ~ 125°C
