609-1555
609-1555
609-1555
Favorite Products
609-1555
609-1555
Amphenol ICC (FCI)

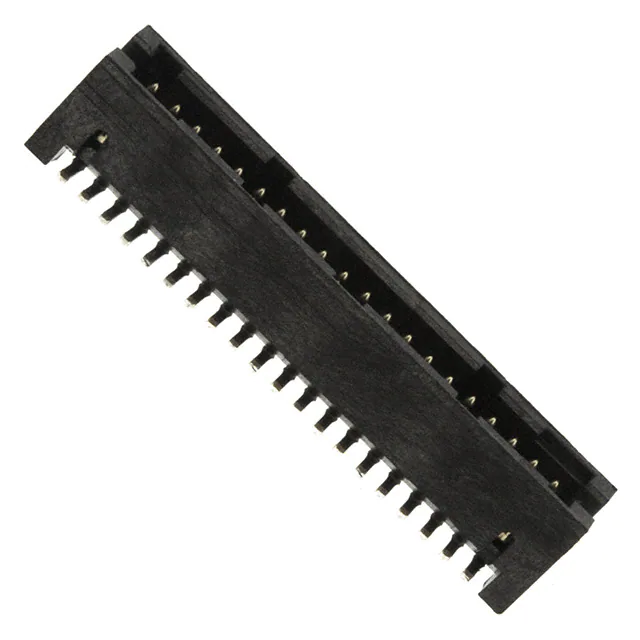

CONN HEADER SMD 40POS 1.27MM
3,056
3,056 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage Rating
-
Overall Contact Length
-
Number of Rows
2
Mfr
Amphenol ICC (FCI)
Connector Type
Header
Series
Rib-Cage™ III
Product Status
Active
Contact Type
Male Pin
Contact Shape
Square
Material Flammability Rating
UL94 V-0
Base Product Number
87409
Shrouding
Shrouded - 4 Wall
Fastening Type
Push-Pull
Contact Length - Post
-
Applications
General Purpose, Military
Row Spacing - Mating
0.050" (1.27mm)
Insulation Material
Thermoplastic, Glass Filled
Ingress Protection
-
Insulation Color
Natural
Pitch - Mating
0.050" (1.27mm)
Termination
Solder
Contact Finish Thickness - Post
100.0µin (2.54µm)
Style
Board to Board
Mounting Type
Surface Mount
Contact Finish - Mating
Gold or Gold, GXT™
Contact Finish - Post
Tin
Contact Length - Mating
0.130" (3.30mm)
Features
Board Guide
Current Rating (Amps)
1A (DC)
Mated Stacking Heights
6.42mm
Package
Tube
Number of Positions
40
Number of Positions Loaded
All
Contact Material
-
Operating Temperature
-55°C ~ 130°C
Insulation Height
0.226" (5.74mm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
