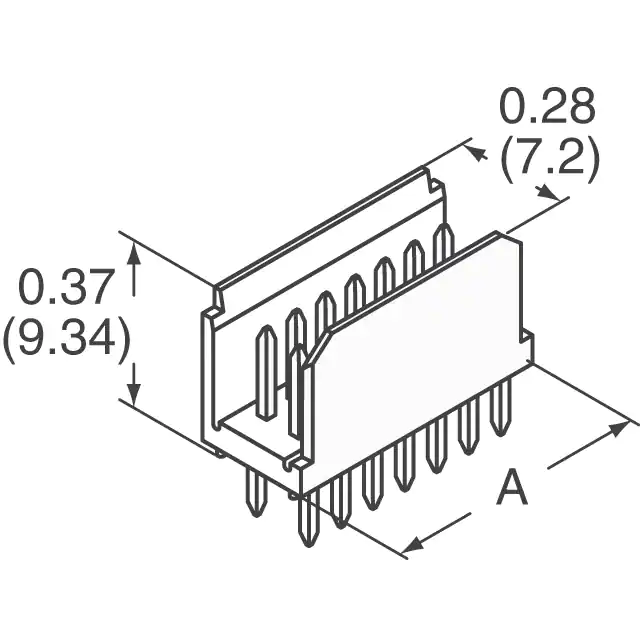

609-1340
609-1340
609-1340
609-1340
Favorite Products
609-1340
609-1340
Amphenol ICC (FCI)
CONN HEADER VERT 24POS 2.54MM
3,032
3,032 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Finish - Post
Tin
Ingress Protection
-
Series
Dubox™
Mfr
Amphenol ICC (FCI)
Product Status
Active
Connector Type
Header
Row Spacing - Mating
0.100" (2.54mm)
Insulation Material
Thermoplastic, Glass Filled
Features
-
Contact Type
Male Pin
Number of Rows
2
Number of Positions
24
Number of Positions Loaded
All
Termination
Solder
Style
Board to Cable/Wire
Overall Contact Length
0.411" (10.44mm)
Insulation Height
0.368" (9.35mm)
Contact Finish - Mating
Gold, GXT™
Operating Temperature
-40°C ~ 125°C
Voltage Rating
-
Package
Tube
Contact Length - Post
0.134" (3.40mm)
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
3A
Mated Stacking Heights
-
Contact Finish Thickness - Post
78.7µin (2.00µm)
Applications
-
Mounting Type
Through Hole
Fastening Type
Friction Lock
Contact Material
Copper Alloy
Insulation Color
Black
Pitch - Mating
0.100" (2.54mm)
Shrouding
Shrouded - 2 Wall
Contact Length - Mating
0.197" (5.00mm)
Contact Shape
Square
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Base Product Number
76385
