609-1305
609-1305
609-1305
Favorite Products
609-1305
609-1305
Amphenol ICC (FCI)

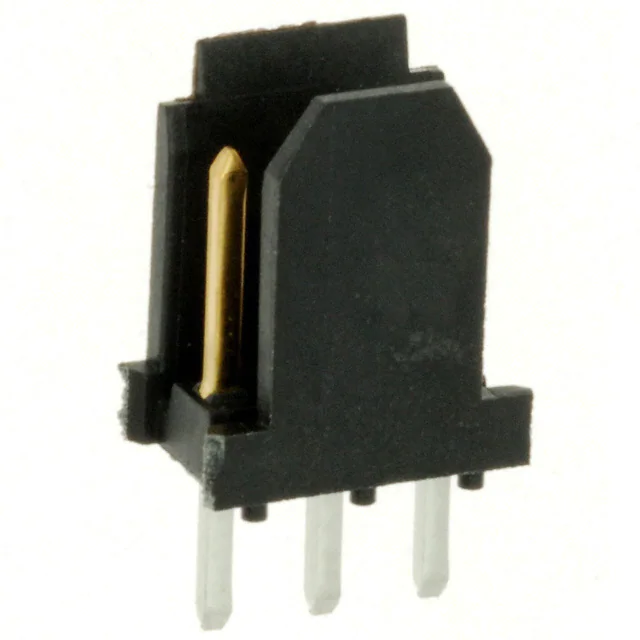

CONN HEADER VERT 3POS 2.54MM
10,080
10,080 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Shape
Square
Pitch - Mating
0.100" (2.54mm)
Package
Bulk
Current Rating (Amps)
3A
Mounting Type
Through Hole
Product Status
Active
Shrouding
Shrouded - 2 Wall
Contact Length - Post
0.134" (3.40mm)
Contact Finish - Mating
Gold, GXT™
Material Flammability Rating
UL94 V-0
Number of Positions
3
Termination
Solder
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
-
Insulation Color
Black
Series
Dubox™
Number of Positions Loaded
All
Ingress Protection
-
Contact Finish Thickness - Post
78.7µin (2.00µm)
Base Product Number
76384
Mfr
Amphenol ICC (FCI)
Connector Type
Header
Insulation Height
0.368" (9.35mm)
Contact Finish - Post
Tin
Mated Stacking Heights
-
Contact Type
Male Pin
Contact Length - Mating
0.197" (5.00mm)
Overall Contact Length
0.411" (10.44mm)
Number of Rows
1
Contact Material
Copper Alloy
Insulation Material
Thermoplastic, Glass Filled
Fastening Type
Friction Lock
Operating Temperature
-40°C ~ 125°C
Voltage Rating
-
Row Spacing - Mating
-
Style
Board to Cable/Wire
Applications
-
