455-2329
455-2329
455-2329
455-2329
Favorite Products
455-2329
455-2329
JST Sales America Inc.

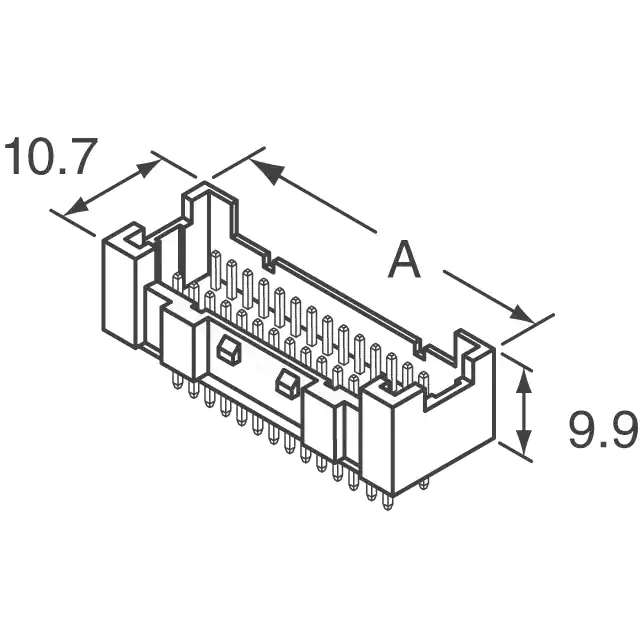

CONN HEADER VERT 22POS 2MM
ePND.pdf
3,005
3,005 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Shrouding
Shrouded - 4 Wall
Features
Board Guide
Package
Tray
Product Status
Active
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250V
Contact Finish - Mating
Tin
Applications
-
Contact Type
Male Pin
Style
Board to Cable/Wire
Mounting Type
Through Hole
Insulation Height
0.390" (9.91mm)
Contact Finish - Post
Tin
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Mfr
JST Sales America Inc.
Number of Rows
2
Contact Shape
Square
Operating Temperature
-25°C ~ 85°C
Current Rating (Amps)
3A
Contact Material
Copper Alloy
Ingress Protection
-
Connector Type
Header
Number of Positions
22
Number of Positions Loaded
All
Overall Contact Length
-
Contact Finish Thickness - Mating
-
Insulation Color
Ivory
Termination
Solder
Contact Length - Post
0.126" (3.20mm)
Contact Finish Thickness - Post
-
Series
PND
Row Spacing - Mating
0.197" (5.00mm)
Fastening Type
Locking Ramp
Contact Length - Mating
-
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
12.9mm
Base Product Number
B22B-PND
