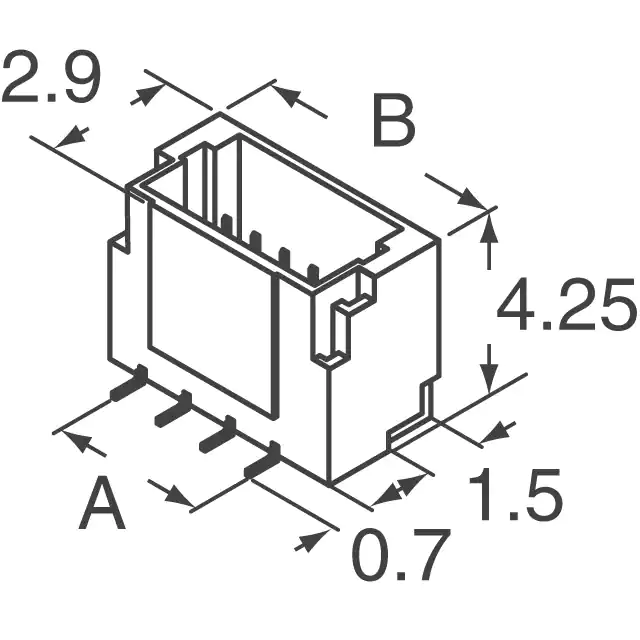

455-1789-2
455-1789-2
455-1789-2
455-1789-2
Favorite Products
455-1789-2
455-1789-2
JST Sales America Inc.
CONN HEADER SMD 3POS 1MM
eSR.pdf
3,057
3,057 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Base Product Number
BM03B-SR
Series
SH/SR
Mounting Type
Surface Mount
Contact Type
Male Pin
Material Flammability Rating
UL94 V-0
Connector Type
Header
Row Spacing - Mating
-
Contact Length - Post
-
Contact Finish - Mating
Tin
Product Status
Active
Contact Length - Mating
-
Number of Positions
3
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Mating
-
Contact Material
Copper Alloy
Mated Stacking Heights
4.9mm
Package
Tape & Reel (TR)^^Cut Tape (CT)^^Digi-Reel®
Number of Positions Loaded
All
Overall Contact Length
-
Operating Temperature
-25°C ~ 85°C
Termination
Solder
Insulation Height
0.167" (4.25mm)
Contact Shape
Square
Ingress Protection
-
Voltage Rating
50V
Style
Board to Cable/Wire
Features
Solder Retention
Insulation Color
Natural
Applications
-
Fastening Type
Push-Pull
Contact Finish Thickness - Post
-
Mfr
JST Sales America Inc.
Pitch - Mating
0.039" (1.00mm)
Number of Rows
1
Contact Finish - Post
Tin
Insulation Material
Polyamide (PA), Nylon
Current Rating (Amps)
1A
