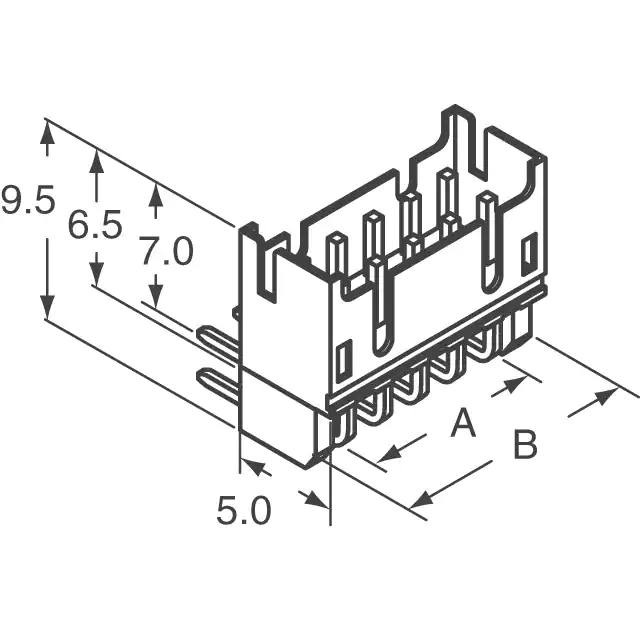

455-1780
455-1780
455-1780
455-1780
Favorite Products
455-1780
455-1780
JST Sales America Inc.
CONN HEADER R/A 20POS 2MM
ePHD.pdf
10,050
10,050 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Bulk
Termination
Solder
Material Flammability Rating
UL94 V-0
Product Status
Active
Current Rating (Amps)
3A
Voltage Rating
250V
Mfr
JST Sales America Inc.
Pitch - Mating
0.079" (2.00mm)
Number of Positions
20
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin
Operating Temperature
-25°C ~ 85°C
Ingress Protection
-
Mounting Type
Through Hole, Right Angle
Contact Finish - Mating
Tin
Features
-
Mated Stacking Heights
-
Row Spacing - Mating
0.079" (2.00mm)
Contact Shape
Square
Contact Finish Thickness - Post
-
Fastening Type
Detent Lock
Insulation Color
Natural
Number of Rows
2
Insulation Height
0.197" (5.00mm)
Contact Type
Male Pin
Number of Positions Loaded
All
Style
Board to Cable/Wire
Overall Contact Length
-
Contact Material
Copper Alloy
Base Product Number
S20B-PHD
Contact Finish Thickness - Mating
-
Applications
-
Series
PHD
Connector Type
Header
Contact Length - Mating
0.114" (2.90mm)
Contact Length - Post
0.118" (3.00mm)
Insulation Material
Polyamide (PA), Nylon, Glass Filled
