281-7834
281-7834
Favorite Products
281-7834
281-7834
Weidmüller

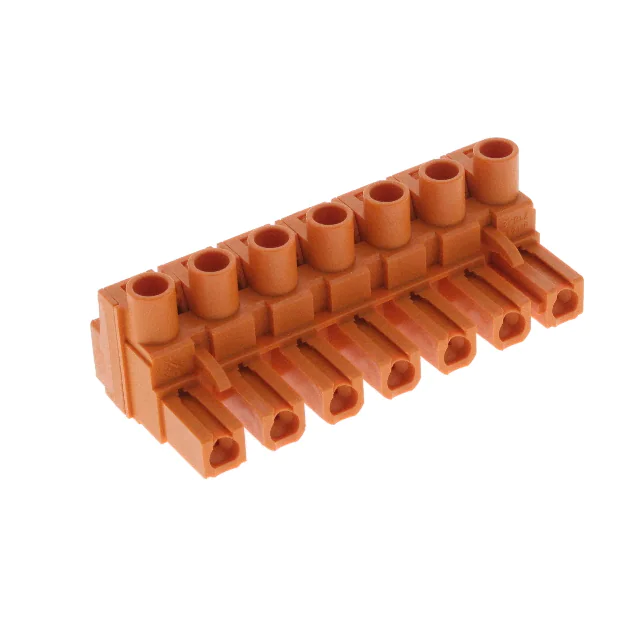

TERM BLOCK PLUG 7POS STR 7.62MM

3,006
3,006 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
Weidmüller
Wire Gauge or Range - AWG
12-20 AWG
Series
Omnimate BL
Current - IEC
29A
Current - UL
20 A
Product Status
Active
Pitch
0.300" (7.62mm)
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Voltage - UL
600 V
Housing Material
Polybutylene Terephthalate (PBT)
Type
Plug, Female Sockets
Operating Temperature
-50°C ~ 100°C
Insulation Height
0.719" (18.26mm)
Number of Positions
7
Voltage - IEC
630 V
Ingress Protection
IP20
Screw Size
M2.5
Contact Material
Copper Alloy
Contact Tail Length
-
Package
Bulk
Material Flammability Rating
UL94 V-0
Number of Levels
1
Plug Wire Entry
180°
Wire Gauge or Range - mm²
0.2-4mm²
Features
Retention Latches (Non-Wire Side)
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Wire Strip Length
7mm
Positions Per Level
7
Header Orientation
-
Mounting Type
Free Hanging (In-Line)
Color
Orange
Contact Mating Finish
Tin
