281-7822
281-7822
Weidmüller

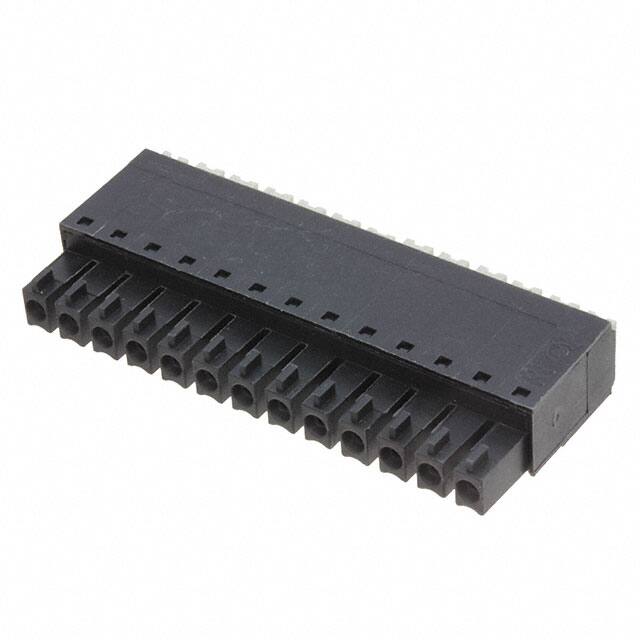

TERM BLOCK PLUG 13POS STR 3.81MM

3,033
3,033 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage - UL
300 V
Number of Levels
1
Package
Bulk
Number of Positions
13
Ingress Protection
IP20
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height
0.311" (7.90mm)
Product Status
Active
Voltage - IEC
320 V
Material Flammability Rating
UL94 V-0
Contact Material
Copper Alloy
Type
Plug, Female Sockets
Positions Per Level
13
Plug Wire Entry
180°
Current - IEC
17.5A
Contact Mating Finish
Tin
Mfr
Weidmüller
Mounting Type
Free Hanging (In-Line)
Color
Black
Operating Temperature
-50°C ~ 120°C
Features
Push Button Actuated
Wire Strip Length
9mm
Pitch
0.150" (3.81mm)
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Gauge or Range - AWG
16-26 AWG
Contact Tail Length
-
Series
Omnimate BC
Header Orientation
-
Current - UL
10 A
Wire Gauge or Range - mm²
0.14-1.5mm²
Screw Size
-
Torque - Screw
-
