281-7618
281-7618
Favorite Products
281-7618
281-7618
Weidmüller

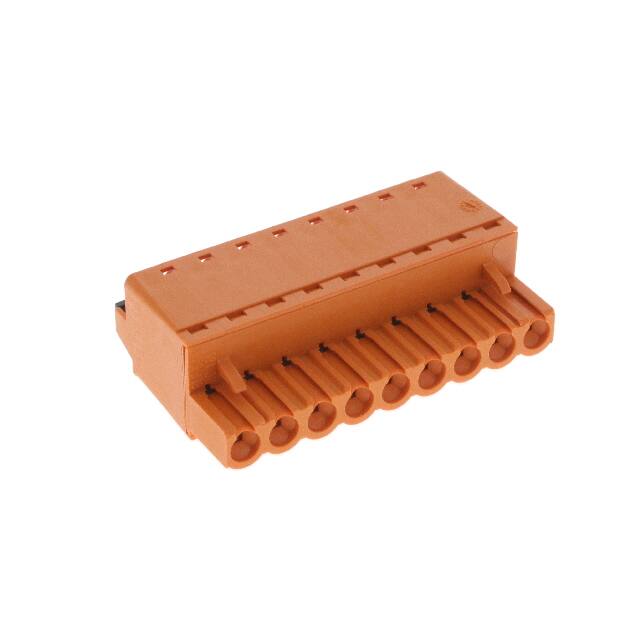

TERM BLOCK PLUG 9POS STR 5.08MM
3,047
3,047 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current - IEC
24A
Wire Gauge or Range - AWG
12-26 AWG
Contact Mating Finish
Tin
Number of Positions
9
Positions Per Level
9
Header Orientation
-
Package
Box
Product Status
Active
Plug Wire Entry
180°
Screw Size
-
Torque - Screw
-
Pitch
0.200" (5.08mm)
Color
Orange
Wire Strip Length
10mm
Housing Material
Polybutylene Terephthalate (PBT)
Mfr
Weidmüller
Operating Temperature
-50°C ~ 100°C
Termination Style
Screwless - Leg Spring, Push-In Spring
Contact Material
Copper Alloy
Contact Tail Length
-
Type
Plug, Female Sockets
Voltage - IEC
400 V
Ingress Protection
IP20
Insulation Height
0.559" (14.20mm)
Series
Omnimate BL
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
Number of Levels
1
Mounting Type
Free Hanging (In-Line)
Voltage - UL
300 V
Current - UL
18.5 A
Features
Retention Latches (Non-Wire Side)
