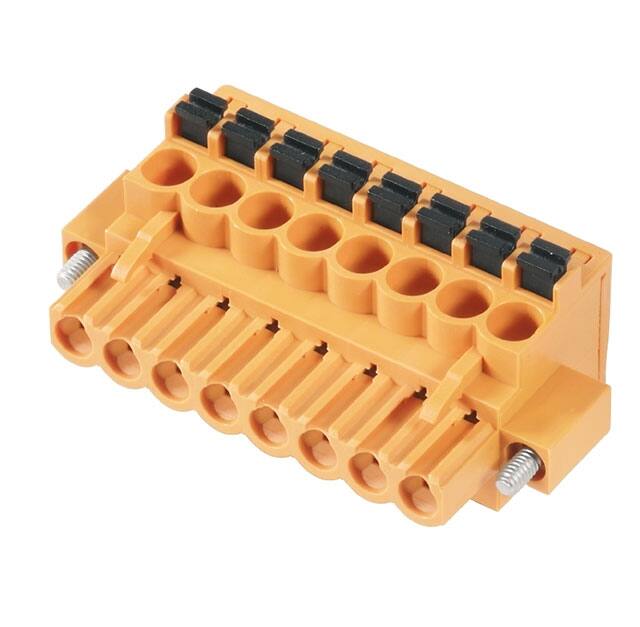

281-7606
281-7606
Favorite Products
281-7606
281-7606
Weidmüller
TERM BLOCK PLUG 8POS 5.08MM
3,083
3,083 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Insulation Height
0.815" (20.70mm)
Termination Style
Screwless - Leg Spring, Push-In Spring
Package
Box
Type
Plug, Female Sockets
Current - UL
18.5 A
Series
Omnimate BL
Product Status
Active
Plug Wire Entry
90°
Current - IEC
24A
Operating Temperature
-50°C ~ 100°C
Positions Per Level
8
Number of Positions
8
Contact Mating Finish
Tin
Housing Material
Polybutylene Terephthalate (PBT)
Contact Tail Length
-
Header Orientation
-
Material Flammability Rating
UL94 V-0
Torque - Screw
-
Mounting Type
Free Hanging (In-Line)
Wire Gauge or Range - mm²
0.2-2.5mm²
Mfr
Weidmüller
Number of Levels
1
Pitch
0.200" (5.08mm)
Voltage - IEC
400 V
Voltage - UL
300 V
Wire Strip Length
-
Color
Orange
Wire Gauge or Range - AWG
12-26 AWG
Ingress Protection
IP20
Screw Size
-
Features
Mating Flange, Retention Latches (Wire Side)
Contact Material
Copper Alloy
