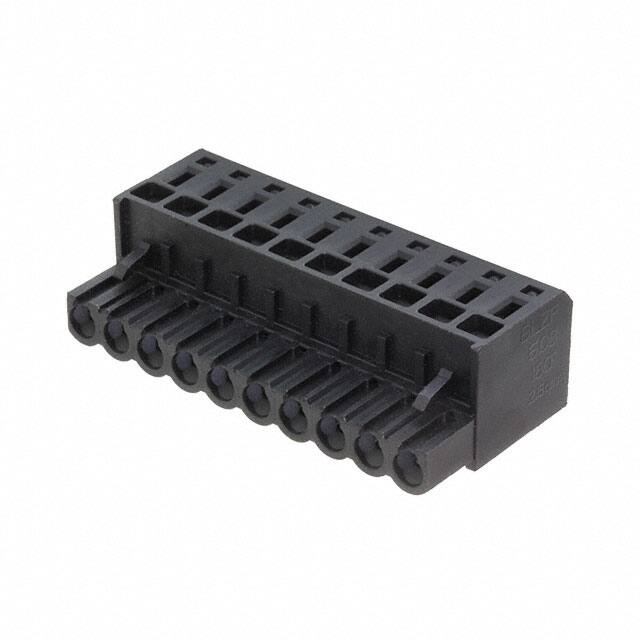

281-4684
281-4684
Favorite Products
281-4684
281-4684
Weidmüller
TERM BLOCK PLUG 10POS STR 5.08MM
1707770000.pdf
3,052
3,052 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Retention Latches (Non-Wire Side)
Package
Bulk
Positions Per Level
10
Plug Wire Entry
180°
Product Status
Obsolete
Voltage - UL
300 V
Color
Black
Material Flammability Rating
UL94 V-0
Torque - Screw
-
Mfr
Weidmüller
Wire Gauge or Range - AWG
12-26 AWG
Ingress Protection
-
Mounting Type
Free Hanging (In-Line)
Current - UL
15 A
Type
Plug, Female Sockets
Current - IEC
17A
Wire Strip Length
10mm
Insulation Height
0.598" (15.19mm)
Operating Temperature
-50°C ~ 100°C
Contact Mating Finish
Tin
Series
Omnimate BL
Number of Positions
10
Number of Levels
1
Pitch
0.200" (5.08mm)
Wire Gauge or Range - mm²
0.2-2.5mm²
Header Orientation
-
Termination Style
Screwless - Spring Cage, Tension Clamp
Screw Size
-
Contact Tail Length
-
Voltage - IEC
400 V
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
