281-3228
281-3228
Weidmüller

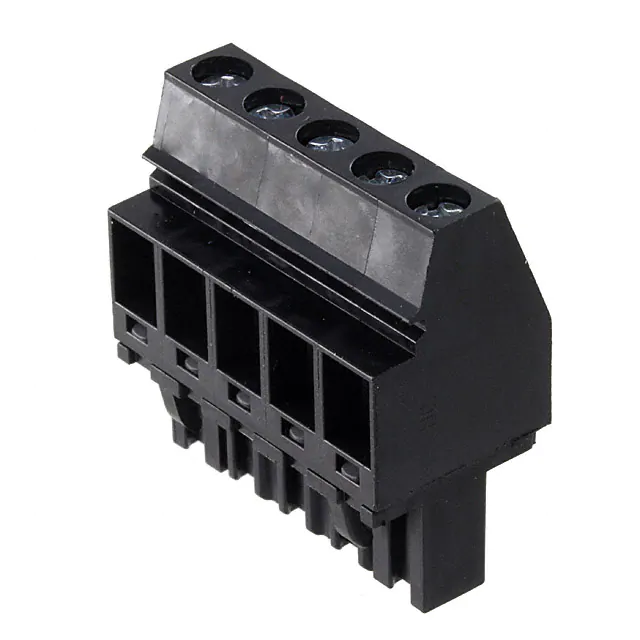

TERM BLOCK PLUG 5POS 5.08MM
3,087
3,087 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Color
Black
Insulation Height
0.555" (14.10mm)
Mfr
Weidmüller
Series
Omnimate BL
Current - IEC
23A
Wire Gauge or Range - mm²
0.2-4mm²
Features
Retention Latches (Wire Side)
Contact Tail Length
-
Product Status
Active
Type
Plug, Female Sockets
Voltage - UL
300 V
Contact Material
Copper Alloy
Number of Positions
5
Pitch
0.200" (5.08mm)
Operating Temperature
-50°C ~ 100°C
Wire Strip Length
7mm
Header Orientation
-
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Material Flammability Rating
UL94 V-0
Voltage - IEC
400 V
Screw Size
M2.5
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Positions Per Level
5
Current - UL
20 A
Contact Mating Finish
Tin
Housing Material
Polybutylene Terephthalate (PBT)
Package
Bulk
Plug Wire Entry
90°
Ingress Protection
-
Number of Levels
1
Mounting Type
Free Hanging (In-Line)
Wire Gauge or Range - AWG
12-30 AWG
