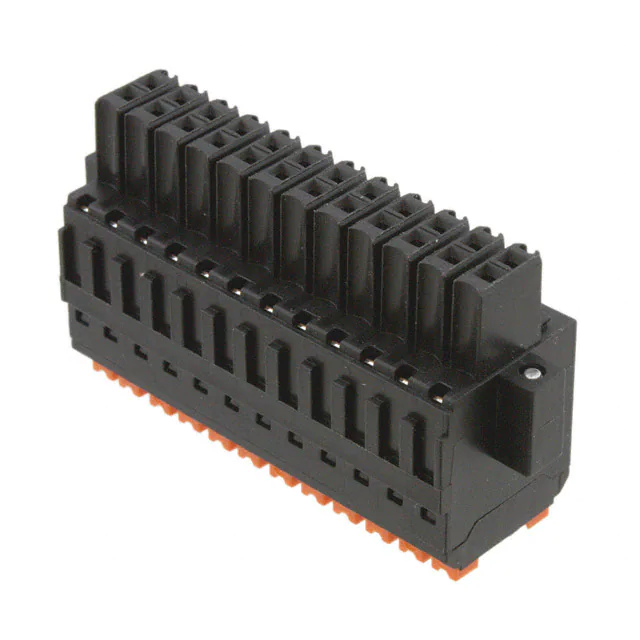

281-3017
281-3017
Weidmüller
TERM BLOCK PLUG 24POS STR 3.5MM
B2CF-S2C-SMT.pdf
10,040
10,040 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Mfr
Weidmüller
Series
Omnimate B2CF
Number of Levels
2
Package
Bulk
Wire Gauge or Range - mm²
0.14-1.5mm²
Torque - Screw
-
Wire Strip Length
10mm
Color
Black
Material Flammability Rating
UL94 V-0
Contact Material
Copper Alloy
Voltage - UL
300 V
Features
Mating Flange
Ingress Protection
IP20
Insulation Height
0.598" (15.19mm)
Mounting Type
Free Hanging (In-Line)
Current - UL
9.5 A
Operating Temperature
-50°C ~ 120°C
Type
Plug, Female Sockets
Contact Tail Length
-
Positions Per Level
12
Voltage - IEC
320 V
Wire Gauge or Range - AWG
16-26 AWG
Screw Size
-
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Product Status
Active
Number of Positions
24
Pitch
0.138" (3.50mm)
Header Orientation
-
Current - IEC
13.4A
Plug Wire Entry
180°
Termination Style
Screwless - Leg Spring, Push-In Spring
Contact Mating Finish
Tin
