281-3001
281-3001
281-3001
Favorite Products

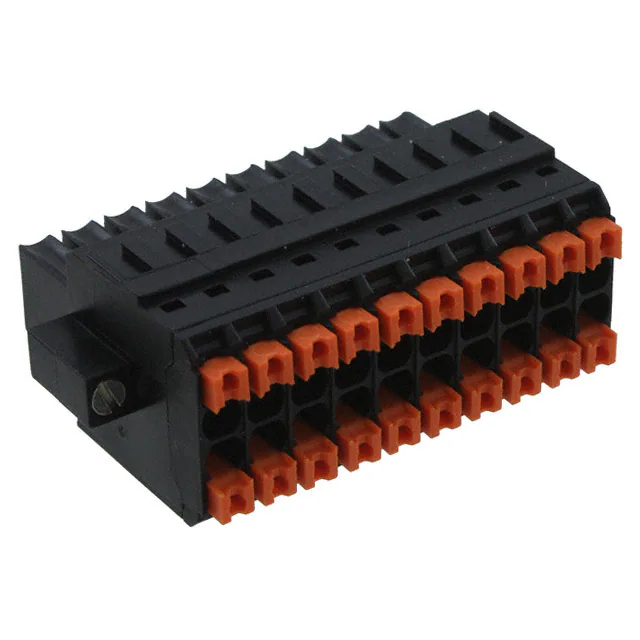

281-3001
281-3001
Weidmüller
TERM BLOCK PLUG 20POS STR 3.5MM
B2CF-S2C-SMT.pdf
3,036
3,036 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Plug Wire Entry
180°
Voltage - IEC
320 V
Features
Mating Flange
Type
Plug, Female Sockets
Mfr
Weidmüller
Pitch
0.138" (3.50mm)
Current - IEC
13.4A
Contact Mating Finish
Tin
Insulation Height
0.598" (15.19mm)
Number of Positions
20
Number of Levels
2
Material Flammability Rating
UL94 V-0
Screw Size
-
Positions Per Level
10
Ingress Protection
IP20
Torque - Screw
-
Contact Material
Copper Alloy
Voltage - UL
300 V
Wire Gauge or Range - mm²
0.14-1.5mm²
Contact Tail Length
-
Product Status
Active
Current - UL
9.5 A
Wire Strip Length
10mm
Package
Bulk
Header Orientation
-
Mounting Type
Free Hanging (In-Line)
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature
-50°C ~ 120°C
Series
Omnimate B2CF
Color
Black
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Gauge or Range - AWG
16-26 AWG
