281-2944
281-2944
Weidmüller

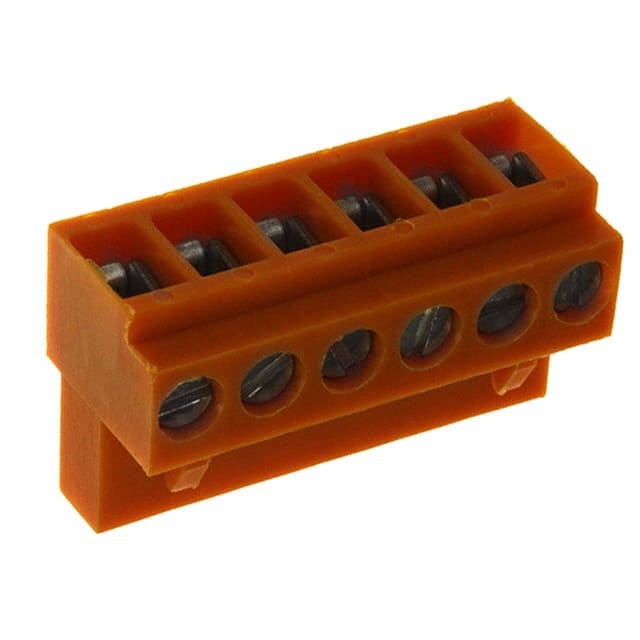

TERM BLOCK PLUG 6POS STR 5.08MM
1716360000.pdf
3,024
3,024 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Wire Gauge or Range - AWG
14-26 AWG
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Mounting Type
Free Hanging (In-Line)
Contact Tail Length
-
Pitch
0.200" (5.08mm)
Mfr
Weidmüller
Plug Wire Entry
180°
Termination Style
Screw - Leaf Spring, Wire Guard
Current - UL
10 A
Voltage - UL
300 V
Color
Orange
Insulation Height
0.492" (12.50mm)
Number of Positions
6
Current - IEC
14A
Product Status
Obsolete
Operating Temperature
-50°C ~ 100°C
Material Flammability Rating
UL94 V-0
Housing Material
Polyamide (PA), Nylon
Type
Plug, Female Sockets
Voltage - IEC
400 V
Wire Gauge or Range - mm²
0.2-1.5mm²
Series
Omnimate BL
Features
Retention Latches (Non-Wire Side)
Wire Strip Length
6mm
Contact Material
Copper Alloy
Package
Bulk
Header Orientation
-
Contact Mating Finish
Tin
Ingress Protection
-
Screw Size
M2.5
Positions Per Level
6
Number of Levels
1
