281-2716
281-2716
281-2716
Favorite Products
281-2716
281-2716
Weidmüller

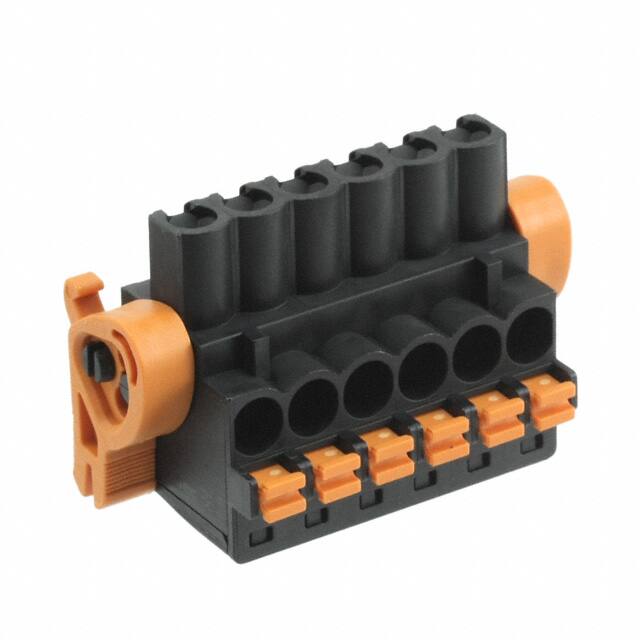

TERM BLOCK PLUG 6POS 5.08MM
1982350000.pdf
3,067
3,067 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current - IEC
24A
Type
Plug, Female Sockets
Insulation Height
-
Number of Positions
6
Color
Black
Package
Box
Header Orientation
-
Voltage - UL
300 V
Wire Gauge or Range - mm²
0.2-2.5mm²
Ingress Protection
IP20
Torque - Screw
-
Contact Tail Length
-
Product Status
Obsolete
Number of Levels
1
Pitch
0.200" (5.08mm)
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
400 V
Wire Gauge or Range - AWG
12-26 AWG
Contact Mating Finish
Tin
Positions Per Level
6
Termination Style
Screwless - Leg Spring, Push-In Spring
Material Flammability Rating
UL94 V-0
Wire Strip Length
10mm
Mfr
Weidmüller
Screw Size
-
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Series
Omnimate BL
Plug Wire Entry
270°
Operating Temperature
-50°C ~ 100°C
Features
Ejector Latches, Retention Latches (Non-Wire Side)
Current - UL
18.5 A
