Weidmüller

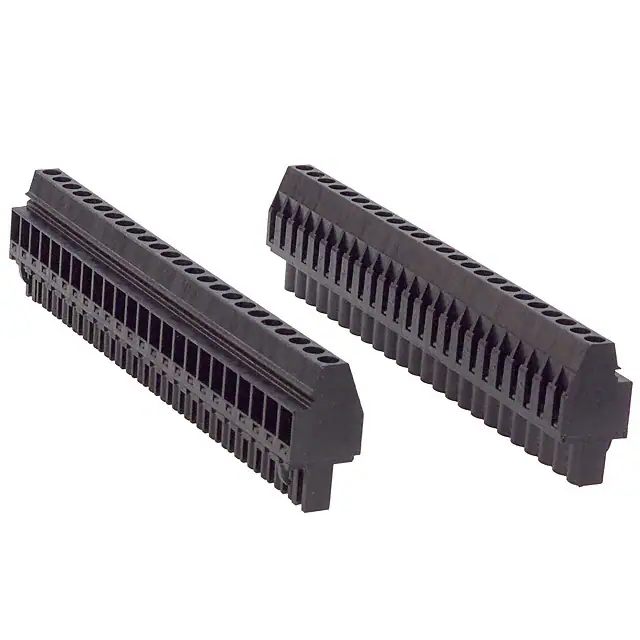

TERM BLOCK PLUG 24POS 5.08MM
1554910000.pdf
3,034
3,034 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Operating Temperature
-50°C ~ 100°C
Current - UL
10 A
Contact Material
Copper Alloy
Number of Levels
1
Features
Retention Latches (Wire Side)
Mounting Type
Free Hanging (In-Line)
Contact Mating Finish
Tin
Positions Per Level
24
Voltage - IEC
400 V
Contact Tail Length
-
Mfr
Weidmüller
Package
Bulk
Product Status
Obsolete
Type
Plug, Female Sockets
Number of Positions
24
Wire Gauge or Range - AWG
12-26 AWG
Screw Size
M2.5
Series
Omnimate BL
Current - IEC
15A
Wire Gauge or Range - mm²
0.2-2.5mm²
Color
Black
Header Orientation
-
Plug Wire Entry
90°
Wire Strip Length
7mm
Insulation Height
1.059" (26.90mm)
Voltage - UL
300 V
Material Flammability Rating
UL94 V-0
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Pitch
0.200" (5.08mm)
Ingress Protection
-
Housing Material
Polybutylene Terephthalate (PBT)
