281-1017
281-1017
Favorite Products
281-1017
281-1017
Weidmüller

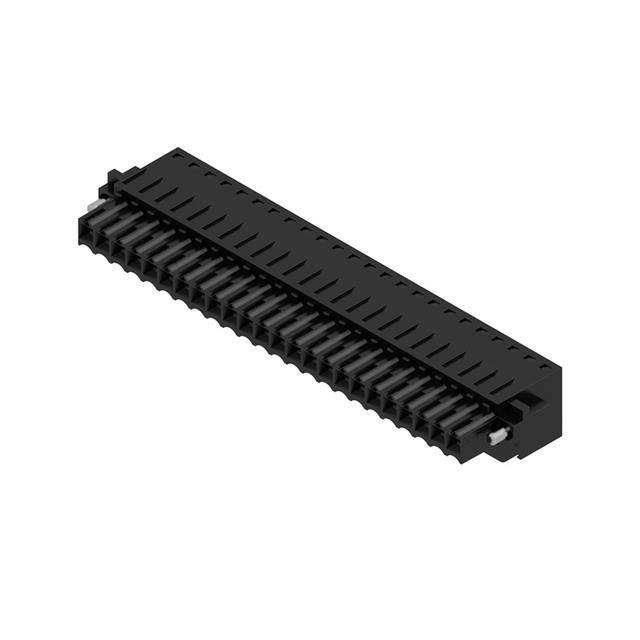

TERM BLOCK PLUG 24POS STR 3.5MM
1691330000.pdf
881
881 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Mating Flange
Wire Gauge or Range - AWG
14-26 AWG
Product Status
Active
Plug Wire Entry
180°
Wire Gauge or Range - mm²
0.2-1.5mm²
Package
Bulk
Current - UL
10 A
Color
Black
Operating Temperature
-50°C ~ 100°C
Positions Per Level
24
Torque - Screw
-
Wire Strip Length
10mm
Series
Omnimate BL
Number of Positions
24
Number of Levels
1
Voltage - UL
300 V
Contact Material
Copper Alloy
Contact Tail Length
-
Termination Style
Screwless - Spring Cage, Tension Clamp
Material Flammability Rating
UL94 V-0
Ingress Protection
IP20
Screw Size
-
Type
Plug, Female Sockets
Mounting Type
Free Hanging (In-Line)
Current - IEC
14.5A
Voltage - IEC
320 V
Insulation Height
0.512" (13.00mm)
Mfr
Weidmüller
Header Orientation
-
Housing Material
Polybutylene Terephthalate (PBT)
Pitch
0.138" (3.50mm)
Contact Mating Finish
Tin
