Phoenix Contact

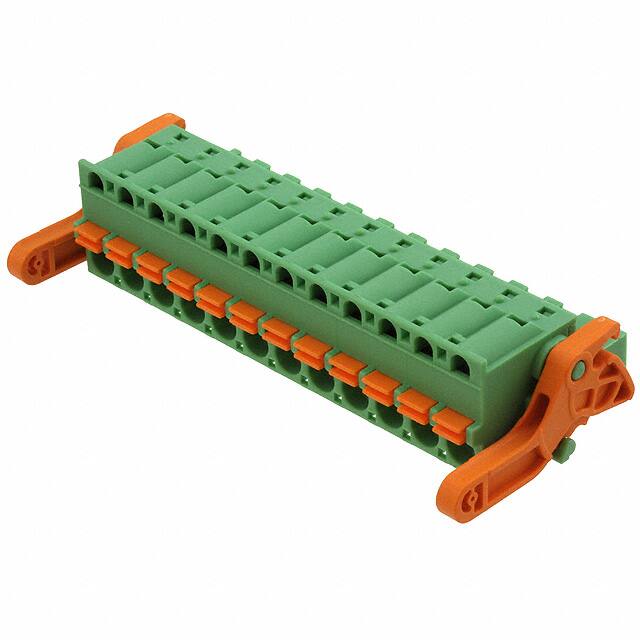

TERM BLOCK PLUG 12POS STR 5.08MM

10,029
10,029 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Material Flammability Rating
UL94 V-0
Housing Material
Polyamide (PA), Nylon
Type
Plug, Female Sockets
Wire Gauge or Range - AWG
12-26 AWG
Current - IEC
12A
Insulation Height
0.591" (15.00mm)
Series
COMBICON FKC
Operating Temperature
-
Number of Positions
12
Header Orientation
-
Voltage - IEC
630 V
Current - UL
10 A
Voltage - UL
300 V
Torque - Screw
-
Pitch
0.200" (5.08mm)
Wire Strip Length
10mm
Contact Tail Length
-
Wire Gauge or Range - mm²
0.2-2.5mm²
Color
Green
Contact Mating Finish
Tin
Screw Size
-
Contact Material
-
Mfr
Phoenix Contact
Product Status
Active
Positions Per Level
12
Plug Wire Entry
180°
Ingress Protection
-
Number of Levels
1
Termination Style
Screwless - Push-In Spring
Mounting Type
Free Hanging (In-Line)
Features
Ejector Latches, Retention Latches (Non-Wire Side)
Package
Bulk
