1980010000
1980010000
Favorite Products
1980010000
1980010000
Weidmüller

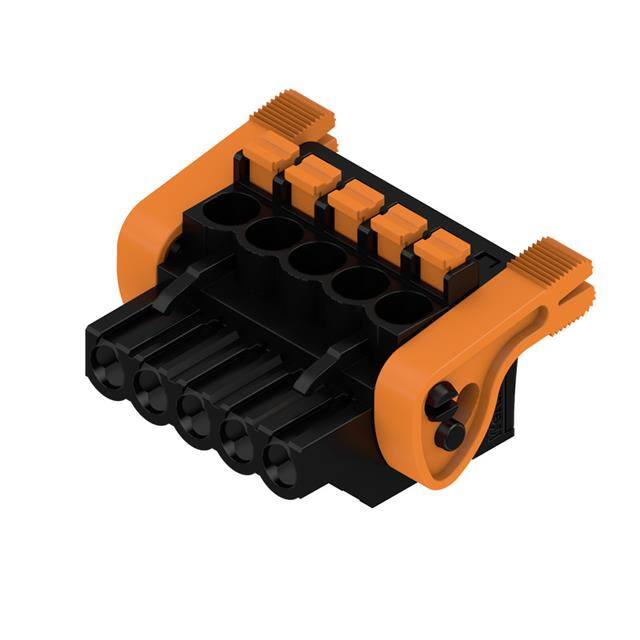

TERM BLOCK PLUG 5POS 90DEG 5MM
3,084
3,084 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Wire Gauge or Range - AWG
12-26 AWG
Series
Omnimate BL
Current - IEC
24A
Current - UL
18.5 A
Contact Mating Finish
Tin
Wire Strip Length
10mm
Package
Box
Insulation Height
-
Number of Levels
1
Plug Wire Entry
90°
Voltage - IEC
400 V
Voltage - UL
300 V
Torque - Screw
-
Mounting Type
Free Hanging (In-Line)
Contact Tail Length
-
Number of Positions
5
Pitch
0.197" (5.00mm)
Features
Ejector Latches, Retention Latches (Wire Side)
Ingress Protection
IP20
Type
Plug, Female Sockets
Color
Black
Operating Temperature
-50°C ~ 100°C
Termination Style
Screwless - Leg Spring, Push-In Spring
Product Status
Active
Positions Per Level
5
Header Orientation
-
Screw Size
-
Mfr
Weidmüller
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
