1969230000
1969230000
Favorite Products
1969230000
1969230000
Weidmüller

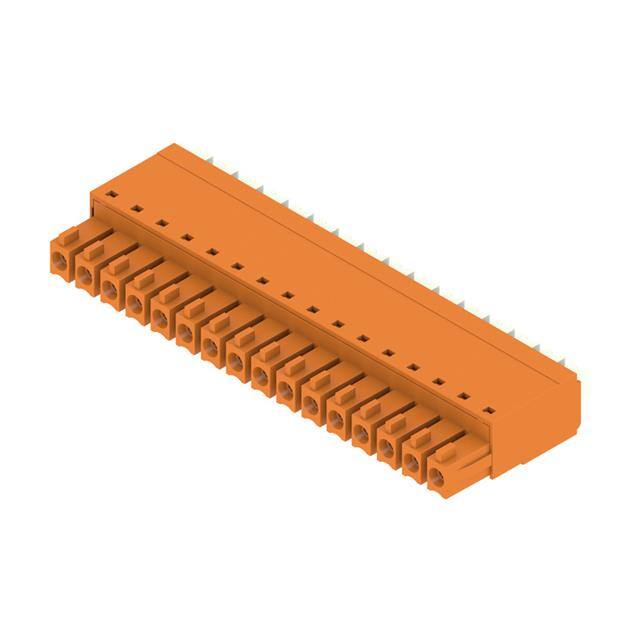

TERM BLOCK PLUG 16POS STR 3.81MM
3,006
3,006 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Push Button Actuated
Plug Wire Entry
180°
Voltage - IEC
320 V
Mfr
Weidmüller
Package
Bulk
Header Orientation
-
Wire Gauge or Range - AWG
16-26 AWG
Color
Orange
Operating Temperature
-50°C ~ 120°C
Number of Levels
1
Voltage - UL
300 V
Contact Mating Finish
Tin
Ingress Protection
IP20
Screw Size
-
Wire Strip Length
9mm
Contact Material
Copper Alloy
Type
Plug, Female Sockets
Contact Tail Length
-
Number of Positions
16
Insulation Height
0.311" (7.90mm)
Series
Omnimate BC
Pitch
0.150" (3.81mm)
Mounting Type
Free Hanging (In-Line)
Current - IEC
17.5A
Current - UL
10 A
Wire Gauge or Range - mm²
0.14-1.5mm²
Material Flammability Rating
UL94 V-0
Product Status
Obsolete
Positions Per Level
16
Termination Style
Screwless - Leg Spring, Push-In Spring
Torque - Screw
-
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
