1969220000
1969220000
Favorite Products
1969220000
1969220000
Weidmüller

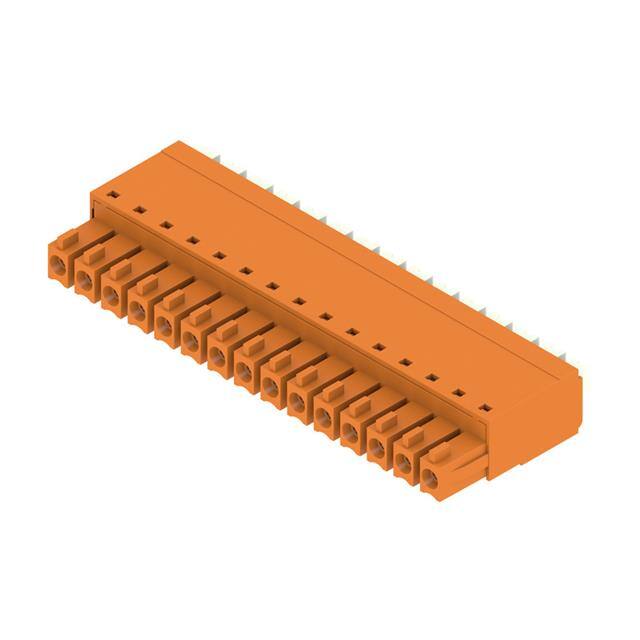

TERM BLOCK PLUG 15POS STR 3.81MM
3,084
3,084 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Product Status
Active
Wire Gauge or Range - AWG
16-26 AWG
Termination Style
Screwless - Leg Spring, Push-In Spring
Mounting Type
Free Hanging (In-Line)
Series
Omnimate BC
Number of Levels
1
Operating Temperature
-50°C ~ 120°C
Screw Size
-
Package
Bulk
Plug Wire Entry
180°
Contact Mating Finish
Tin
Mfr
Weidmüller
Current - UL
10 A
Voltage - UL
300 V
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height
0.311" (7.90mm)
Material Flammability Rating
UL94 V-0
Number of Positions
15
Positions Per Level
15
Header Orientation
-
Voltage - IEC
320 V
Contact Material
Copper Alloy
Contact Tail Length
-
Type
Plug, Female Sockets
Features
Push Button Actuated
Ingress Protection
IP20
Torque - Screw
-
Current - IEC
17.5A
Wire Gauge or Range - mm²
0.14-1.5mm²
Color
Orange
Wire Strip Length
9mm
Pitch
0.150" (3.81mm)
