1960410000
1960410000
Favorite Products
1960410000
1960410000
Weidmüller

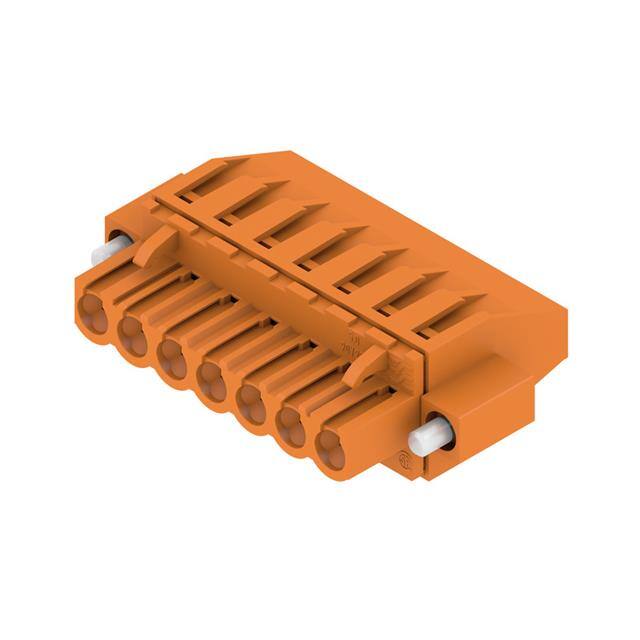

TERM BLOCK PLUG 7POS 270DEG 5MM
3,014
3,014 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage - UL
300 V
Type
Plug, Female Sockets
Mounting Type
Free Hanging (In-Line)
Pitch
0.197" (5.00mm)
Voltage - IEC
400 V
Wire Gauge or Range - mm²
0.2-4mm²
Wire Strip Length
7mm
Header Orientation
-
Positions Per Level
7
Material Flammability Rating
UL94 V-0
Housing Material
Polybutylene Terephthalate (PBT)
Plug Wire Entry
270°
Current - IEC
15.5A
Current - UL
15 A
Color
Orange
Package
Bulk
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Mfr
Weidmüller
Number of Positions
7
Screw Size
-
Product Status
Active
Operating Temperature
-
Contact Mating Finish
Tin
Features
Mating Flange, Retention Latches (Non-Wire Side)
Ingress Protection
-
Insulation Height
1.071" (27.20mm)
Series
Omnimate BL
Number of Levels
1
Wire Gauge or Range - AWG
12-30 AWG
Contact Material
Copper Alloy
Contact Tail Length
-
