Weidmüller

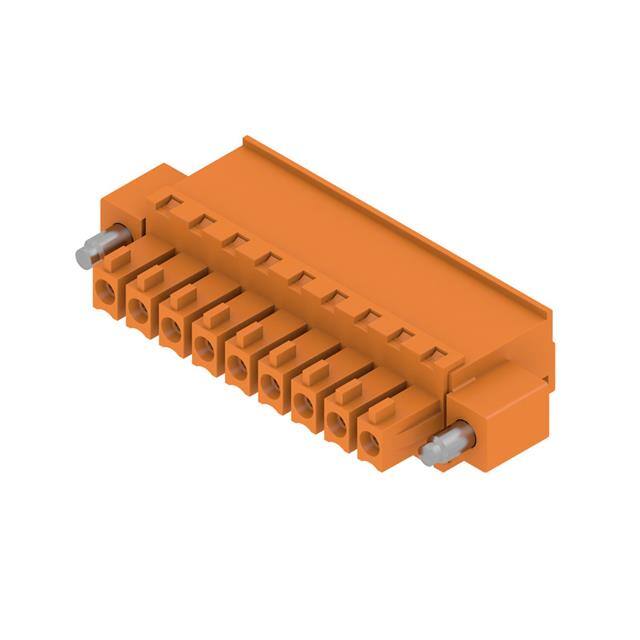

TERM BLOCK PLUG 9POS 3.81MM
3,003
3,003 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Current - UL
10 A
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Positions Per Level
9
Plug Wire Entry
270°
Voltage - IEC
320 V
Wire Gauge or Range - AWG
16-28 AWG
Color
Orange
Contact Mating Finish
Tin
Wire Strip Length
7mm
Product Status
Active
Operating Temperature
-50°C ~ 120°C
Number of Levels
1
Pitch
0.150" (3.81mm)
Voltage - UL
300 V
Torque - Screw
0.2-0.25 Nm (1.7-2.2 Lb-In)
Contact Tail Length
-
Number of Positions
9
Ingress Protection
IP20
Contact Material
Copper Alloy
Current - IEC
17.5A
Features
Mating Flange
Type
Plug, Female Sockets
Screw Size
M2
Housing Material
Polyamide (PA), Nylon, Glass Filled
Series
Omnimate BC
Package
Bulk
Header Orientation
-
Mfr
Weidmüller
Mounting Type
Free Hanging (In-Line)
Wire Gauge or Range - mm²
0.2-1.5mm²
Material Flammability Rating
UL94 V-0
Insulation Height
0.411" (10.44mm)
