1929880000
1929880000
Favorite Products
1929880000
1929880000
Weidmüller

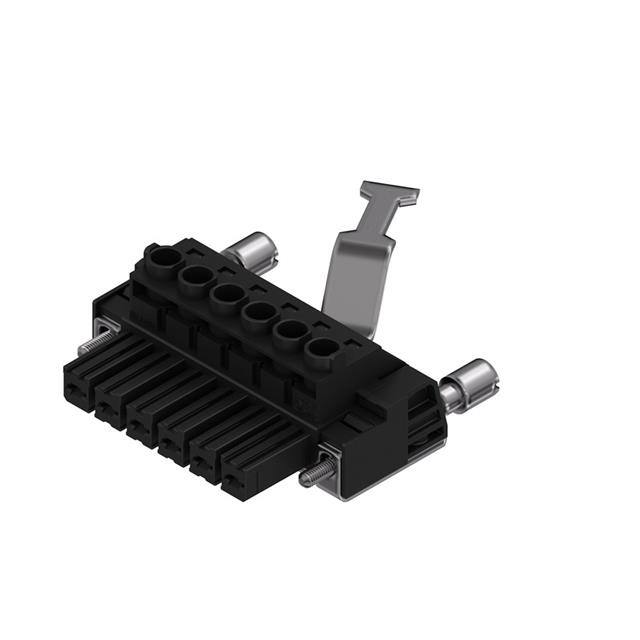

TERM BLOCK PLUG 6POS STR 7.62MM
3,064
3,064 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Mating Flange, Strain Relief
Housing Material
Polyamide (PA), Nylon, Glass Filled
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Wire Gauge or Range - mm²
0.2-6mm²
Package
Bulk
Ingress Protection
IP20
Wire Strip Length
12mm
Number of Levels
1
Insulation Height
-
Current - UL
40.5 A
Screw Size
M3
Mfr
Weidmüller
Number of Positions
6
Voltage - UL
600 V
Material Flammability Rating
UL94 V-0
Contact Tail Length
-
Type
Plug, Blade Sockets
Current - IEC
41A
Positions Per Level
6
Operating Temperature
-50°C ~ 125°C
Contact Mating Finish
Tin
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Contact Material
Copper Alloy
Header Orientation
-
Plug Wire Entry
180°
Voltage - IEC
1 kV
Series
Omnimate BV
Mounting Type
Free Hanging (In-Line)
Wire Gauge or Range - AWG
8-24 AWG
Product Status
Active
Pitch
0.300" (7.62mm)
Color
Black
