Weidmüller

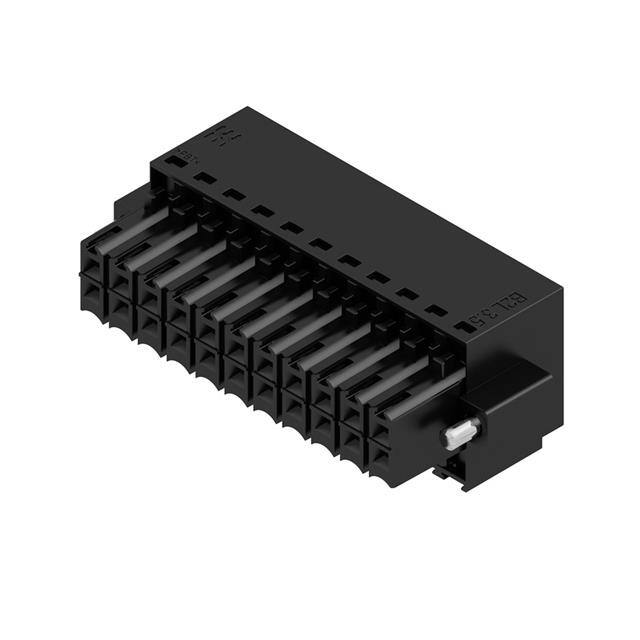

TERM BLOCK PLUG 22POS STR 3.5MM
1748250000.pdf
3,055
3,055 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Color
Black
Positions Per Level
11
Voltage - IEC
250 V
Mounting Type
Free Hanging (In-Line)
Insulation Height
0.618" (15.70mm)
Termination Style
Screwless - Spring Cage, Tension Clamp
Contact Mating Finish
Tin
Material Flammability Rating
UL94 V-0
Header Orientation
-
Type
Plug, Female Sockets
Plug Wire Entry
180°
Ingress Protection
IP20
Screw Size
-
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
2
Pitch
0.138" (3.50mm)
Torque - Screw
-
Series
Omnimate B2L
Number of Positions
22
Current - IEC
10.3A
Voltage - UL
150 V
Mfr
Weidmüller
Wire Gauge or Range - mm²
0.2-1mm²
Operating Temperature
-50°C ~ 100°C
Features
Mating Flange
Wire Strip Length
7mm
Contact Tail Length
-
Package
Bulk
Product Status
Active
Current - UL
10 A
Wire Gauge or Range - AWG
16-28 AWG
Contact Material
Copper Alloy
