1687710000
1687710000
Favorite Products
1687710000
1687710000
Weidmüller

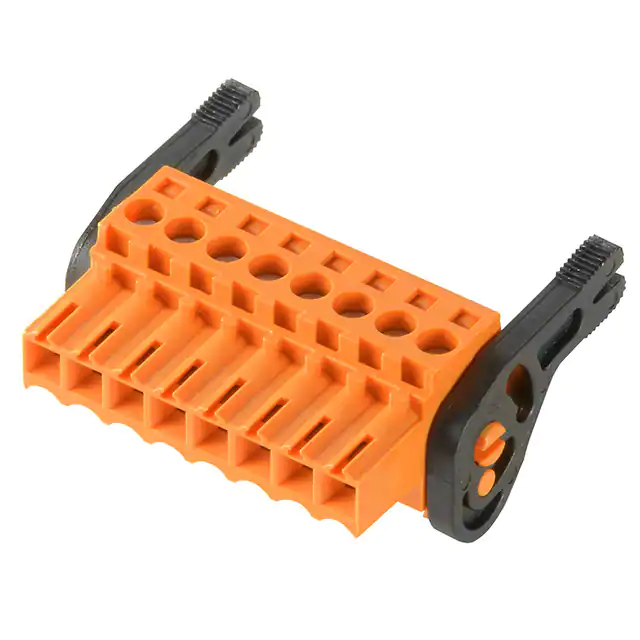

TERM BLOCK PLUG 8POS STR 3.5MM
1687710000.pdf
3,062
3,062 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Ingress Protection
IP20
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Package
Bulk
Product Status
Active
Current - UL
10 A
Number of Levels
1
Current - IEC
17A
Pitch
0.138" (3.50mm)
Insulation Height
0.648" (16.46mm)
Contact Mating Finish
Tin
Screw Size
M2
Contact Tail Length
-
Wire Gauge or Range - AWG
14-28 AWG
Wire Gauge or Range - mm²
0.2-1.5mm²
Features
Ejector Latches
Material Flammability Rating
UL94 V-0
Series
Omnimate BL
Type
Plug, Female Sockets
Positions Per Level
8
Contact Material
Copper Alloy
Number of Positions
8
Plug Wire Entry
180°
Housing Material
Polybutylene Terephthalate (PBT)
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
320 V
Voltage - UL
300 V
Mfr
Weidmüller
Header Orientation
-
Color
Orange
Operating Temperature
-50°C ~ 100°C
Torque - Screw
0.2-0.25 Nm (1.7-2.2 Lb-In)
Wire Strip Length
6mm
