1580970000
1580970000
Favorite Products
1580970000
1580970000
Weidmüller

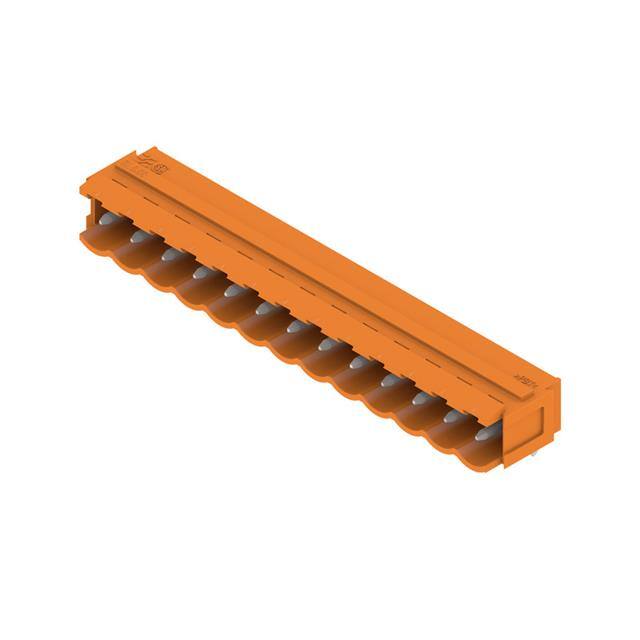

TERM BLOCK HDR 13POS 90DEG 5MM
1580970000.pdf
3,016
3,016 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Voltage - UL
300 V
Screw Size
-
Current - UL
15 A
Mfr
Weidmüller
Package
Bulk
Termination Style
Solder
Wire Gauge or Range - AWG
-
Insulation Height
0.330" (8.38mm)
Plug Wire Entry
-
Mounting Type
Through Hole
Color
Orange
Torque - Screw
-
Header Orientation
90°, Right Angle
Operating Temperature
-50°C ~ 100°C
Series
Omnimate SL
Number of Positions
13
Wire Gauge or Range - mm²
-
Features
-
Wire Strip Length
-
Contact Tail Length
0.126" (3.20mm)
Housing Material
Polybutylene Terephthalate (PBT)
Product Status
Active
Material Flammability Rating
UL94 V-0
Ingress Protection
IP20
Type
Header, Male Pins, Shrouded (4 Side)
Number of Levels
1
Positions Per Level
13
Voltage - IEC
400 V
Contact Mating Finish
Tin
Contact Material
Copper Alloy
Pitch
0.197" (5.00mm)
Current - IEC
18A
