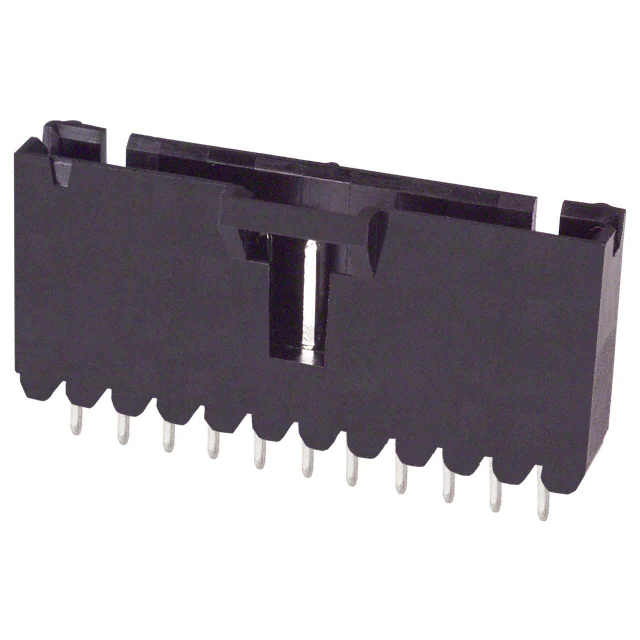

147969-3
147969-3
Favorite Products
147969-3
147969-3
CONN HEADER VERT 11POS 2.54MM
147969-4.pdf
10,009
10,009 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Contact Length - Post
0.130" (3.30mm)
Connector Type
Header
Contact Finish - Mating
Tin-Lead
Insulation Material
Liquid Crystal Polymer (LCP)
Insulation Height
0.535" (13.60mm)
Ingress Protection
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Product Status
Active
Contact Shape
Square
Mated Stacking Heights
-
Termination
Solder
Contact Length - Mating
0.230" (5.84mm)
Current Rating (Amps)
-
Applications
Automotive, General Purpose, Medical, Telecommunications
Package
Tube
Fastening Type
Latch Holder
Base Product Number
147969
Series
AMPMODU MTE
Contact Type
Male Pin
Row Spacing - Mating
-
Style
Board to Board or Cable
Features
Keying Slot
Pitch - Mating
0.100" (2.54mm)
Number of Rows
1
Overall Contact Length
-
Contact Finish Thickness - Mating
100.0µin (2.54µm)
Contact Finish - Post
Tin-Lead
Material Flammability Rating
UL94 V-0
Number of Positions Loaded
10
Contact Material
Brass
Voltage Rating
-
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole
Operating Temperature
-65°C ~ 105°C
Mfr
TE Connectivity AMP Connectors
Number of Positions
11
Insulation Color
Black
