1017840000
1017840000
Favorite Products
1017840000
1017840000
Weidmüller

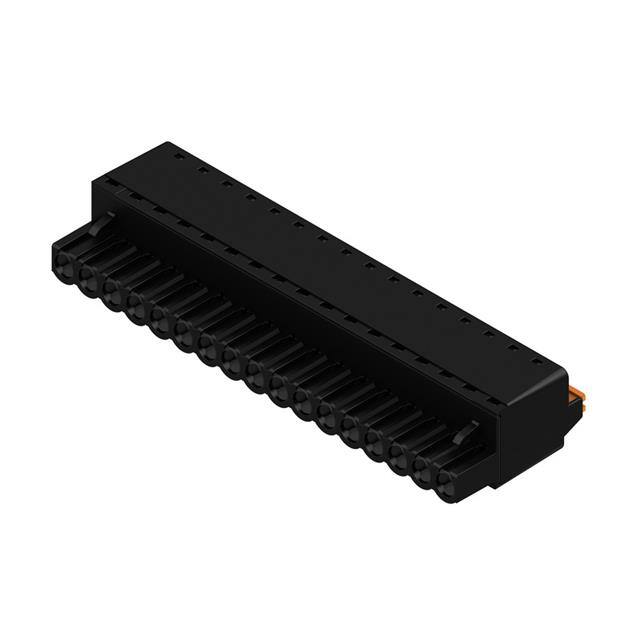

TERM BLOCK PLUG 17POS STR 5MM
3,035
3,035 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Series
Omnimate BL
Current - IEC
20.5A
Wire Gauge or Range - AWG
12-26 AWG
Housing Material
Polybutylene Terephthalate (PBT)
Product Status
Active
Mounting Type
Free Hanging (In-Line)
Current - UL
10 A
Operating Temperature
-50°C ~ 100°C
Wire Strip Length
10mm
Contact Material
Copper Alloy
Type
Plug, Female Sockets
Material Flammability Rating
UL94 V-0
Ingress Protection
IP20
Contact Tail Length
-
Screw Size
-
Pitch
0.197" (5.00mm)
Voltage - IEC
400 V
Voltage - UL
300 V
Torque - Screw
-
Mfr
Weidmüller
Plug Wire Entry
180°
Features
Retention Latches (Non-Wire Side)
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Gauge or Range - mm²
0.2-2.5mm²
Package
Box
Positions Per Level
17
Number of Levels
1
Header Orientation
-
Color
Black
Contact Mating Finish
Tin
Number of Positions
17
Insulation Height
0.559" (14.20mm)
