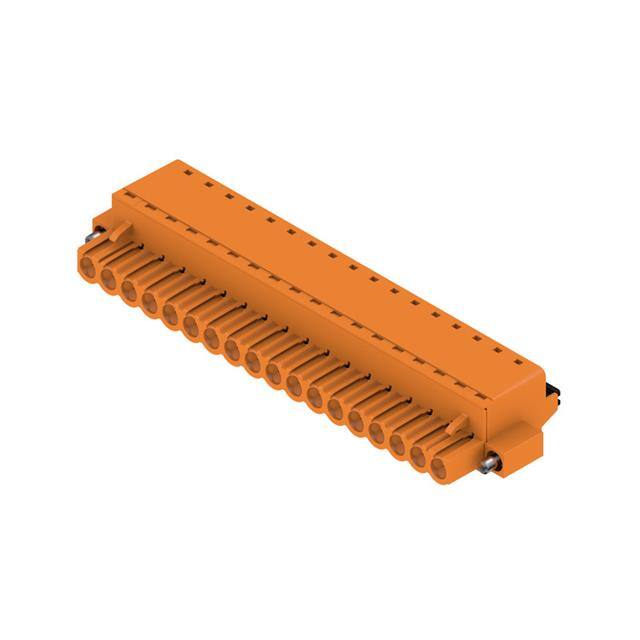

1017620000
1017620000
Favorite Products
1017620000
1017620000
Weidmüller
TERM BLOCK PLUG 18POS STR 5MM
3,096
3,096 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Features
Mating Flange, Retention Latches (Non-Wire Side)
Type
Plug, Female Sockets
Termination Style
Screwless - Leg Spring, Push-In Spring
Plug Wire Entry
180°
Torque - Screw
-
Pitch
0.197" (5.00mm)
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
400 V
Header Orientation
-
Screw Size
-
Positions Per Level
18
Number of Levels
1
Current - IEC
20.5A
Current - UL
10 A
Wire Gauge or Range - AWG
12-26 AWG
Operating Temperature
-50°C ~ 100°C
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Height
0.559" (14.20mm)
Voltage - UL
300 V
Contact Mating Finish
Tin
Series
Omnimate BL
Package
Box
Color
Orange
Product Status
Active
Wire Gauge or Range - mm²
0.2-2.5mm²
Wire Strip Length
10mm
Contact Tail Length
-
Mfr
Weidmüller
Number of Positions
18
Material Flammability Rating
UL94 V-0
Ingress Protection
IP20
