1016460000
1016460000
Favorite Products
1016460000
1016460000
Weidmüller

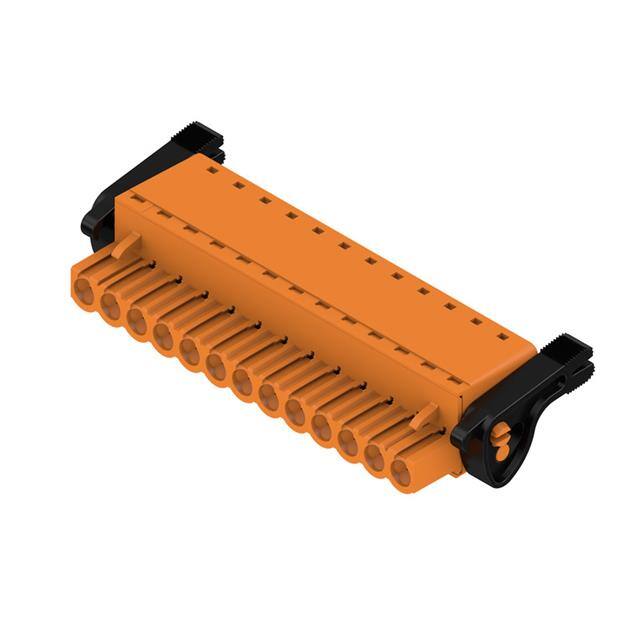

TERM BLOCK PLUG 13POS STR 5MM
10,080
10,080 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Package
Box
Color
Orange
Header Orientation
-
Wire Gauge or Range - AWG
12-26 AWG
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Height
0.594" (15.09mm)
Mfr
Weidmüller
Series
Omnimate BL
Product Status
Active
Positions Per Level
13
Ingress Protection
IP20
Torque - Screw
-
Contact Material
Copper Alloy
Contact Tail Length
-
Features
Ejector Latches, Retention Latches (Non-Wire Side)
Type
Plug, Female Sockets
Operating Temperature
-50°C ~ 100°C
Number of Positions
13
Plug Wire Entry
180°
Current - UL
10 A
Screw Size
-
Pitch
0.197" (5.00mm)
Contact Mating Finish
Tin
Termination Style
Screwless - Leg Spring, Push-In Spring
Mounting Type
Free Hanging (In-Line)
Material Flammability Rating
UL94 V-0
Wire Strip Length
10mm
Voltage - IEC
400 V
Voltage - UL
300 V
Number of Levels
1
Current - IEC
20.5A
Wire Gauge or Range - mm²
0.2-2.5mm²
