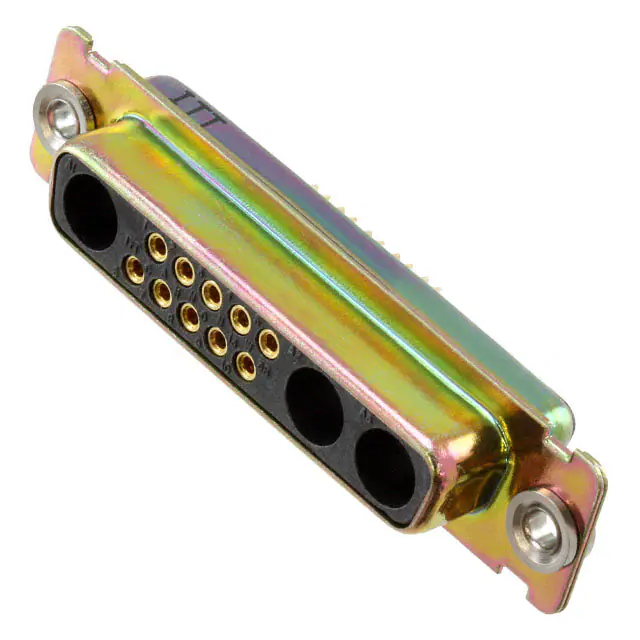

1003-1793
1003-1793
ITT Cannon, LLC
CONN D-SUB RCPT 13POS PNL MNT
D-Sub Connectors
3,066
3,066 In Stock
More quantities are on the way.
Product Attributes
Type PARAMETERS
Flange Feature
Housing/Shell (Unthreaded)
Connector Type
Receptacle, Female Sockets
Mounting Type
Panel Mount
Shell Size, Connector Layout
3 (DB, B) - 13C3, 13W3
Voltage Rating
-
Product Status
Active
Features
Shielded
Mfr
ITT Cannon, LLC
Number of Rows
2
Current Rating (Amps)
7.5A
Backset Spacing
-
Ingress Protection
-
Contact Material
Copper Alloy
Number of Positions
13 (10 + 3 Coax or Power)
Contact Type
Signal and Coax or Power (Not Included)
Wire Gauge
8-26 AWG
Termination
Solder Cup
Shell Material, Finish
Steel, Yellow Chromate Plated Zinc
Contact Form
Machined
Series
24308-Style, Combo D®, D*MM
Contact Finish
Gold
Material Flammability Rating
UL94 V-0
Dielectric Material
Polycyclohexylenedimethylene Terephthalate (PCT)
Operating Temperature
-55°C ~ 150°C
Package
Bulk
Connector Style
D-Sub, Combo
Contact Finish Thickness
50.0µin (1.27µm)
Color
Black
